Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36

Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36

Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36

The bench-top FH-36 fume hood provides a working space that minimizes the chance of damages from a hazardous situation. The fume hood is equipped with tempered glass with anti-shattering film, centrifugal fan blower, and vapor-proof low-voltage LED light. It is an ideal fume-hood for the material research lab to handle flammable or corrosive gasses. It is a 45-inch wide platform that can accommodate small-to-medium size ovens/furnaces.
SPECIFICATIONS

Features	Ducted type fume hood Steel frame with tempered glass front & side panel Anti-shattering film on front glass panel: the film holds shattered glass in place to minimize damage from broken glass. Chemical-resistant laminate platform Fire retardant Compact Grade Laminate plates (Rear)
Power Requirement	110V 60Hz 220V +/-10% Single Phase configuration is available at extra cost (>300W transformer is needed)
Blower	Inline Centrifugal blower (ETL Listed) Flow Rate: CFM: 780 Speed: RPM: 2480 Power: 110V, 2.1Amps Fan Diameter: 10 inch
Socket Type	110VAC, 15amps
Accessories	low-voltage, spark-free light Two Power Plugs are installed on the hood 10" horse-port ( the horse pipe is not included )
Option Accessories at extra cost	Please contact us to order optional Inline carbon filter to maintain a safe laboratory environment. Extra cost $1100 will be added Compact design carbon filter, leave enough room to operate inside the fume hood. (28 inches height remain to operate from the bottom of the fume hood )
Power Requirement	220V 50/60Hz, Single Phase 110V configuration is available at extra cost
Compliance	MET Certification is available upon request at extra cost, please contact our sales representitives for a price quote. Certify standards include: 1) Induction heater: UL61010-1 & UL499; 2) Vacuum Pump: UL1450; 3) Water Chiller: UL61010 & UL1995
Application Note	If your lab required to reduce the airflow needed, you may need to limit the door height (sash height for example 18") during operation. Please email us before ordering, we could add a height limit for the fume hood. For CVD and hydrogen furnace, you may place furnaces into the fume hood for better safety

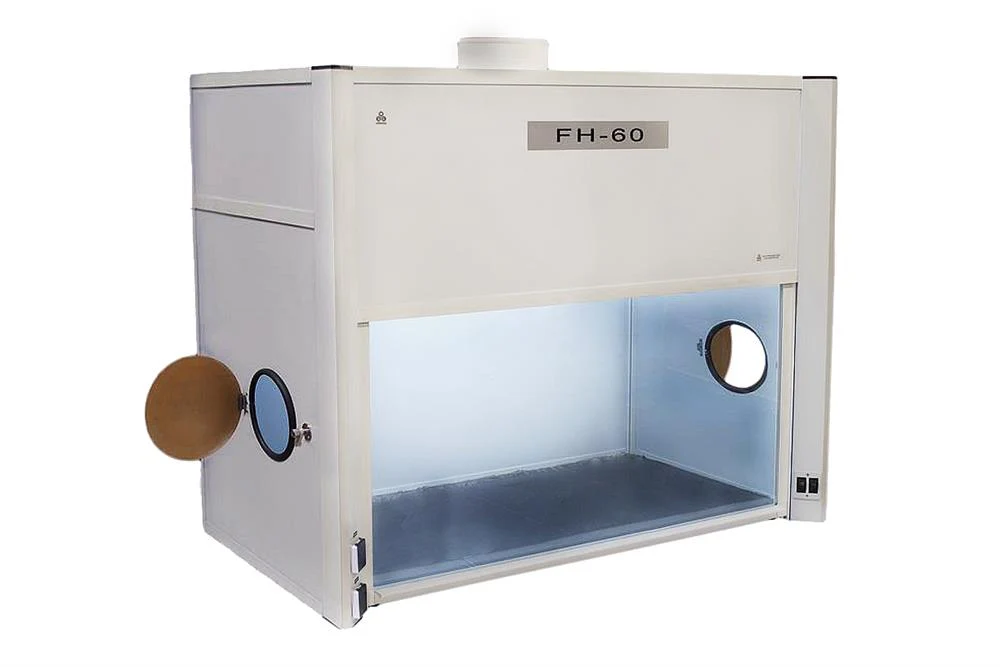

Related Product	Please browse our FH-60 for a large furnace fume hood solution.

$1,499.40

Original: $4,998.00

-70%

Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36—

$4,998.00

$1,499.40

More Images

Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36 - Image 2

Bench-Top Fume Hood with Lamp & Blower with optional Carbon-filtered Enclosures, 45"Wx 25"Dx 41"H, -FH-36

The bench-top FH-36 fume hood provides a working space that minimizes the chance of damages from a hazardous situation. The fume hood is equipped with tempered glass with anti-shattering film, centrifugal fan blower, and vapor-proof low-voltage LED light. It is an ideal fume-hood for the material research lab to handle flammable or corrosive gasses. It is a 45-inch wide platform that can accommodate small-to-medium size ovens/furnaces.
SPECIFICATIONS

Features	Ducted type fume hood Steel frame with tempered glass front & side panel Anti-shattering film on front glass panel: the film holds shattered glass in place to minimize damage from broken glass. Chemical-resistant laminate platform Fire retardant Compact Grade Laminate plates (Rear)
Power Requirement	110V 60Hz 220V +/-10% Single Phase configuration is available at extra cost (>300W transformer is needed)
Blower	Inline Centrifugal blower (ETL Listed) Flow Rate: CFM: 780 Speed: RPM: 2480 Power: 110V, 2.1Amps Fan Diameter: 10 inch
Socket Type	110VAC, 15amps
Accessories	low-voltage, spark-free light Two Power Plugs are installed on the hood 10" horse-port ( the horse pipe is not included )
Option Accessories at extra cost	Please contact us to order optional Inline carbon filter to maintain a safe laboratory environment. Extra cost $1100 will be added Compact design carbon filter, leave enough room to operate inside the fume hood. (28 inches height remain to operate from the bottom of the fume hood )
Power Requirement	220V 50/60Hz, Single Phase 110V configuration is available at extra cost
Compliance	MET Certification is available upon request at extra cost, please contact our sales representitives for a price quote. Certify standards include: 1) Induction heater: UL61010-1 & UL499; 2) Vacuum Pump: UL1450; 3) Water Chiller: UL61010 & UL1995
Application Note	If your lab required to reduce the airflow needed, you may need to limit the door height (sash height for example 18") during operation. Please email us before ordering, we could add a height limit for the fume hood. For CVD and hydrogen furnace, you may place furnaces into the fume hood for better safety
Related Product	Please browse our FH-60 for a large furnace fume hood solution.
