1200oC Max. Laminating and Sintering Furnace for SOFC Electrodes up to 4KN @ 12x12" Area - KSL1200XMHP

1200oC Max. Laminating and Sintering Furnace for SOFC Electrodes up to 4KN @ 12x12" Area - KSL1200XMHP

1200oC Max. Laminating and Sintering Furnace for SOFC Electrodes up to 4KN @ 12x12" Area - KSL1200XMHP

KSL-1200X-M-HP is a hot press sintering laminating furnace that provides precise pneumatic constant pressure control up to a maximum pressure of 4KN up to 1200°C. It can be used in the sintering of SOFC electrode sheets at high temperatures to limit the gap defects caused by thermal expansion, as well as in wafer sintering and welding, and sintering of ceramics and metals with high density. The furnace is built with a dual-slidable heating chamber to make sample placement at easy.

SPECIFICATIONS:

Features	The heating furnace adopts a double sliding door mode, which is convenient for sample loading Prograamable digital temperature control with +/- 1oC accuracy
Power	AC208 - 240V, 50/60 Hz, single phase 8 kW
Heating chamber	Continuous working temperature: 1100ºC ( Max. 1200°C for one hour ) Heating rate: ≤10°C/min Heating Chamber: 300x300x300mm ( max. sample area ) Cylinder stroke: 300 mm Thermocouple: Type K including Sic plate is placed on the bottom to support pressure
Temperature Uniformity	+/- 5°C @ 1000°C in the center 350 x 350 x 350mm area
Pressure	One gas cylinder is stalled on the top of the furnace to apply pressure to the sample via the alumina rod Pressure rod: 99% Alumina, 60mm diameter One pressure sensor is installed between the pushing rod and the cylinder, which needs water cooling Cylinder stroke: 300 mm Max force : 4KN (400KG) Optional: You may need a ceramic die to press a disk-like sample You may need dual SiC sheets to press a sheet-like sample One Air Compressor ( > 120 PSI ) is required to connect with the cylinder to apply pressure ( click the picture below to order ) One recirculating water chiller is required to cool the pressure sensor. (Click the picture below left to order )
Controller	One touch screen PC is included for operation of the temperature and pressure Remote control via ethernet cable Remote control via ethernet cable Digital temperature controllers with +/-1 accuracy with 30 programmable segments 10 custom formulas can be pre-stored Auto and Manual mode Customizable pressure mode Realtime display data(temp, pressure, duration), and logging.
Compliance	NRTL or CSA certification is available upon request

$34,998.00

1200oC Max. Laminating and Sintering Furnace for SOFC Electrodes up to 4KN @ 12x12" Area - KSL1200XMHP—

$34,998.00

More Images

1200oC Max. Laminating and Sintering Furnace for SOFC Electrodes up to 4KN @ 12x12" Area - KSL1200XMHP - Image 2

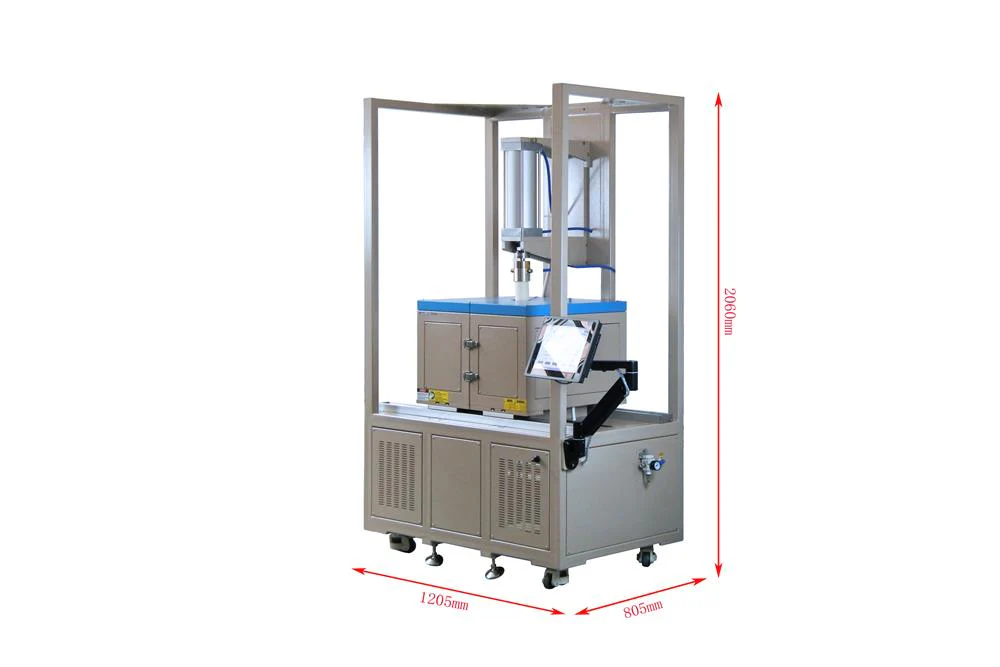

1200oC Max. Laminating and Sintering Furnace for SOFC Electrodes up to 4KN @ 12x12" Area - KSL1200XMHP - Image 3

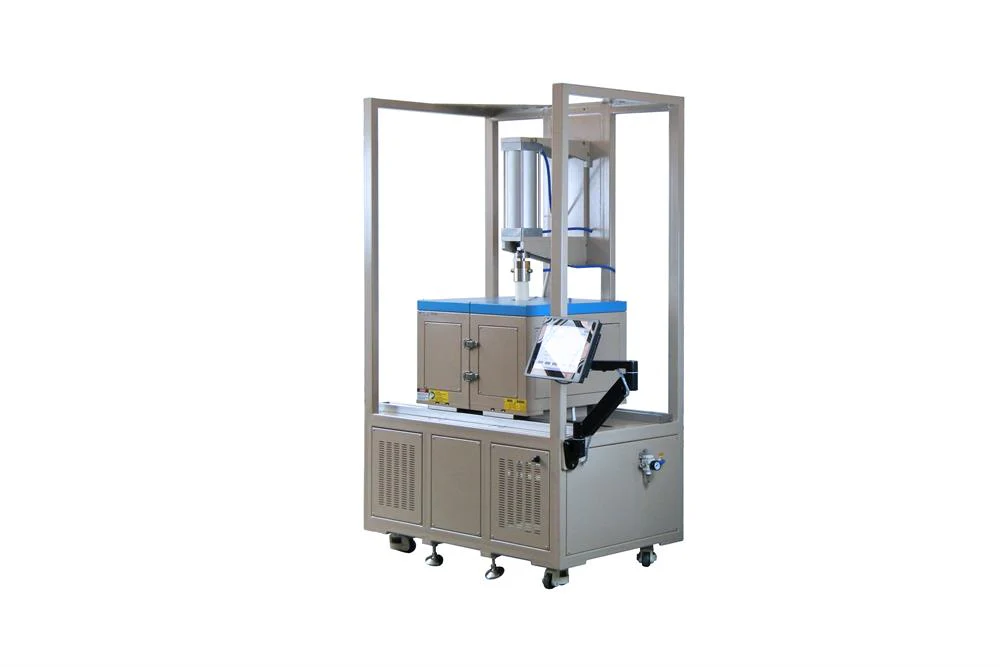

1200oC Max. Laminating and Sintering Furnace for SOFC Electrodes up to 4KN @ 12x12" Area - KSL1200XMHP - Image 4
