500°C Max 30 T Precision Laminating Hot Press (12" x 12" area) with Dual Temp. Controller - YLJ-HP300
HomeStore

500°C Max 30 T Precision Laminating Hot Press (12" x 12" area) with Dual Temp. Controller - YLJ-HP300

500°C Max 30 T Precision Laminating Hot Press (12" x 12" area) with Dual Temp. Controller - YLJ-HP300

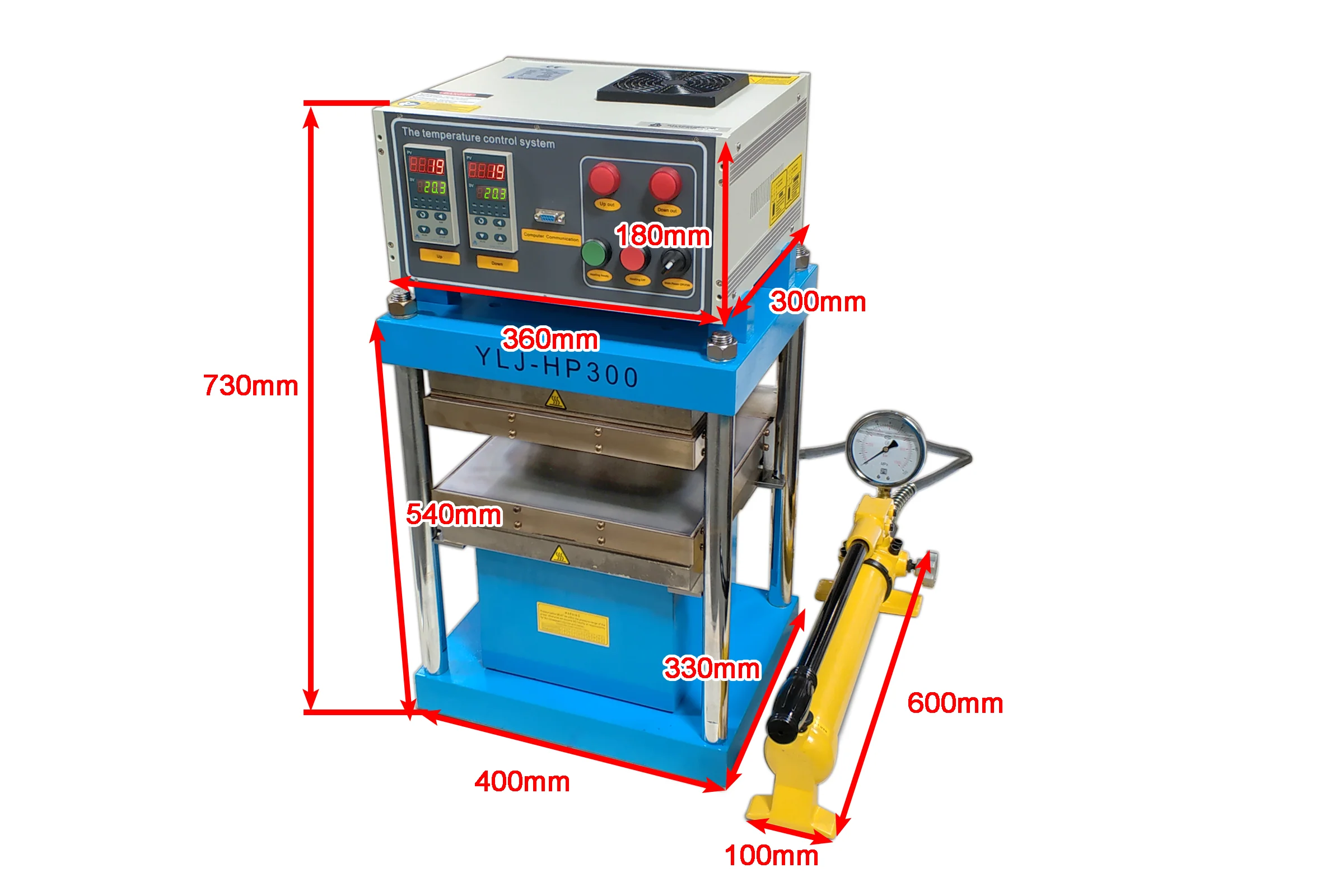

YLJ-HP300 (updated from YLJ-HP100 ) is 500°C Max. lamination hot press, which consists of a 30T hydraulic press with two heated platens. The temperatures of the heated platens are controlled by two digital temperature controllers separately up to 500°C. The platens ( 300 x 300 mm area) are made of hardened Cr12MoV alloy with a flat surface. Water cooling jackets are installed with the heating platen that allows the heated plate to get faster cooling. One pressure gauge (300 kN) is also mounted to monitor the pressure applied on the plate. It is an excellent tool to prepare polymer and ceramic samples, and SOEC cells (solid-oxide electrolyzer cells).

SPECIFICATIONS:
Hydraulic Press
  • The hydraulic pump and hydraulic cylinder are separated for easy replacement
  • Max. Force: 30T
  • Manual operation
Max. Working Pressure
Gauge Displayed Pressure Value (MPa)  5  10   20  25 30   41
Actual Force Applied on the Hydraulic Cylinder (Ton)  5.5 8 15 18.5 22 30
  • The actual force applied to the Hydraulic Cylinder (Ton) equal to the force applied to your working piece
  • For calculating the actual pressure applied on the working piece, please follow the equations below:
  • P = T/(πr^2) x g x 10
    • P: Pressure (MPa) applied to your working piece
    • T: Force (Ton) applied to the Hydraulic Cylinder
    • g: Standard gravity. g ≈ 9.8 m/s2
    • π: ~3.14
    • r: Radius (cm) of the working piece
    • *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2
Pressure Gauge
  • Measuring Accuracy is +/-1.25 kN
Heated Platen Area
  • Platen Area: 300 mm x 300 mm (Nominal 12"x12")
  • Material: Harden Cr12MoV alloy
  • Surface: Flattening with CNC grinding
  • The parallelism between two plates: < 0.1 mm within 10"x10" area at 500°C
  • Plate surface roughness: < 2 microns
Max. Travel Distance
  • 80 mm
  • Do not raise the bottom cylinder (piston) more than it's maximum traveling distance (80 mm)
Pressing Plate Max. Opening Height
  • 79 mm
Max. Working Temperature
  • 500°C Max within 60 minutes
  • 400°C continuous with water cooling
Heating Rate & Cooling Rate
  • ≤ 2°C/min
Water Cooling Jacket
  • Two water cooling jackets are built on the back of the top and bottom heating plate separately with 1/4" water pipe connectors. Such a configuration allows you to cool the sample as soon as the hot pressing process is completed.

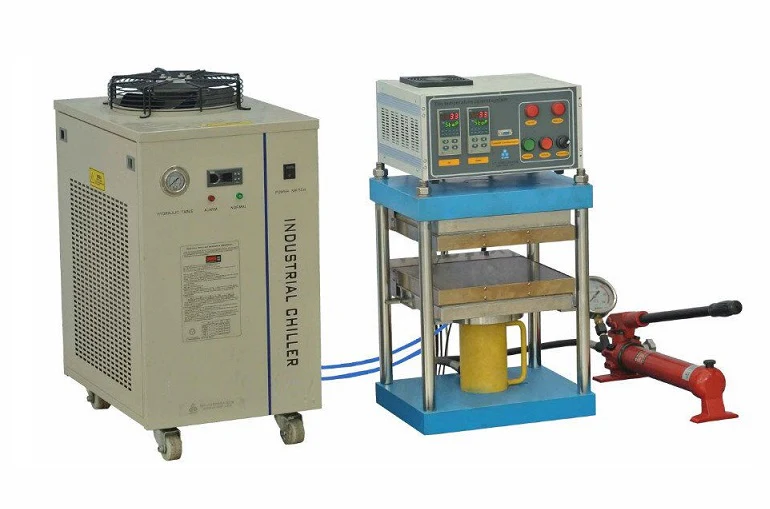

  • One recirculating water chiller is required but not included in the standard package.  KJ5300 water chiller would be suitable for the operation. （Pic.1)
  • The electric hydraulic pump can be paired with the laminator for automatic pressure control. (Pic 3-4)
    However, the pumping time may take 15 minutes.
  •       Pic.1  Pic.2  Pic.3Pic.4
Temperature Control
  • Two digital controllers are installed in one box with 30 segments programmable and auto-tune faction
  • Temperature accuracy ±2°C
  • The computer software is included for setting up the temperature profile and data logging (not for pressure).
Power Requirement
  • 208 - 240 VAC, 50/60Hz, single phase
  • 4.5 kW max.
  • 20 A circuit breaker is required for 220 V, 5' length power cable included, but no plug
Compliance
  • CE Certified for the whole furnace
  • NRTL (UL 61010) or CSA Certification is available upon request, additional charges will apply
Application Note
  • The Hot Press can be located inside of a glovebox and a temperature controller and the pump will be put outside of the glove box Pic. 1
  • The hot press can be used for measuring the thermo-electric generator module ( top hot and bottom cool) Pic. 2
  •  Pic. 1  Pic. 2
