Roll to Roll Edge Slitting Machine (Max.300mm W) for Single Strip of Cylindrical/Pouch Battery - MSK-540
HomeStore

Roll to Roll Edge Slitting Machine (Max.300mm W) for Single Strip of Cylindrical/Pouch Battery - MSK-540

Roll to Roll Edge Slitting Machine (Max.300mm W) for Single Strip of Cylindrical/Pouch Battery - MSK-540

MSK-540 is a Roll to Roll automatic slitting / trimming machine mainly used for the coated electrode edge cutting in order to prepare the single strip of electrodes of cylindrical or pouch batteries in R&D laboratories.

SPECIFICATIONS:

Working Voltage
  • Power supply: Single-phase 220VAC, 50/60Hz
  • For operating at 110V AC, please order a transformer separately by click Picture below
Max. Power Consumption
  • 400W
Features
  • Burr condition: ≤ 25 um
  • Automatic Tension control ≤ 50N
  • Max. Reeling/Unreeling Diameter: 250mm
  • Automatic unwinding correction, accuracy ± 0.5mm

Cutting Blades
  • Top and bottom set of round blades
  • Blade Materials: ultrafine tungsten alloy
  • Blade Diameter: 100mm
Cutting Width
  • 30 ~ 300 mm adjustable
  • Stepless adjustable, manual adjustment, digital display
Cutting Thickness
  • 10 - 300 um
Cutting Speed
  • 1 - 5 meter / minute Adjustable
Optional Upgrades
  • Multi-blade and wrapping roller can be upgraded to enable slitting at 5 strips at an extra cost
  • De-dusting and iron powder removing devices can be added at extra cost as pictures below
  •


Compliance
  • CE certified
  • NRTL or CSA certification is available upon request
  • The patent 201821974061.8 since September 2019.



$13,759.50

Original: $45,865.00

-70%
Roll to Roll Edge Slitting Machine (Max.300mm W) for Single Strip of Cylindrical/Pouch Battery - MSK-540—

$45,865.00

$13,759.50

More Images

Roll to Roll Edge Slitting Machine (Max.300mm W) for Single Strip of Cylindrical/Pouch Battery - MSK-540 - Image 2

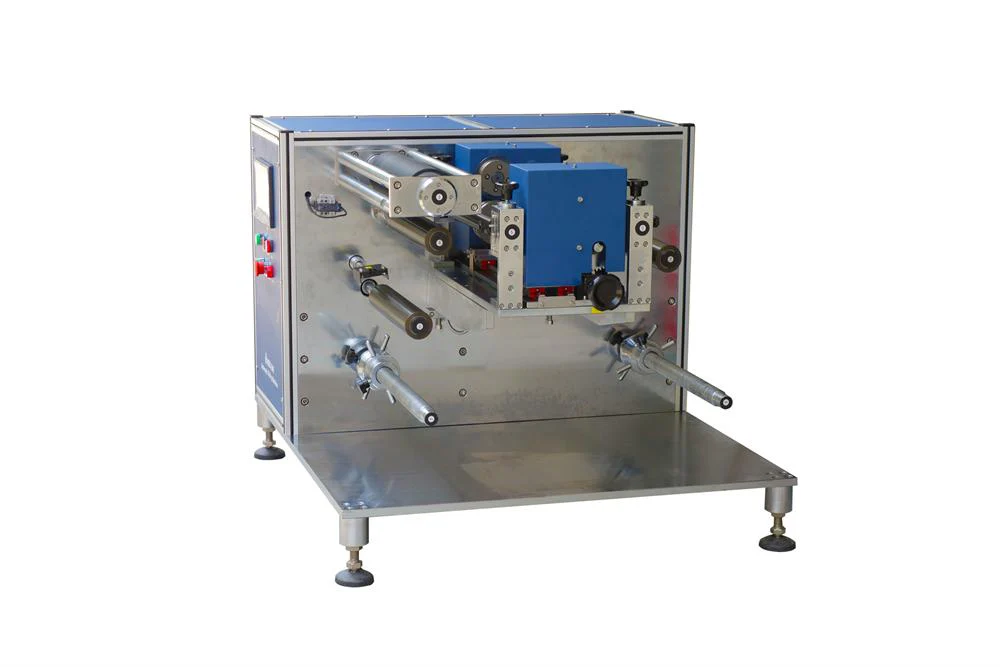

Roll to Roll Edge Slitting Machine (Max.300mm W) for Single Strip of Cylindrical/Pouch Battery - MSK-540 - Image 3

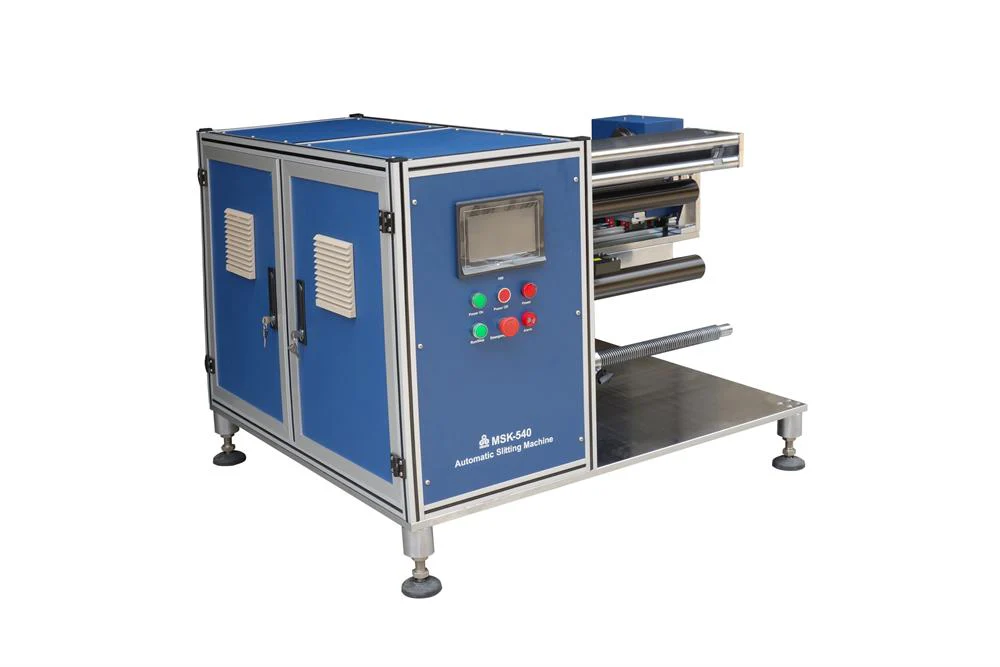

Roll to Roll Edge Slitting Machine (Max.300mm W) for Single Strip of Cylindrical/Pouch Battery - MSK-540 - Image 4
