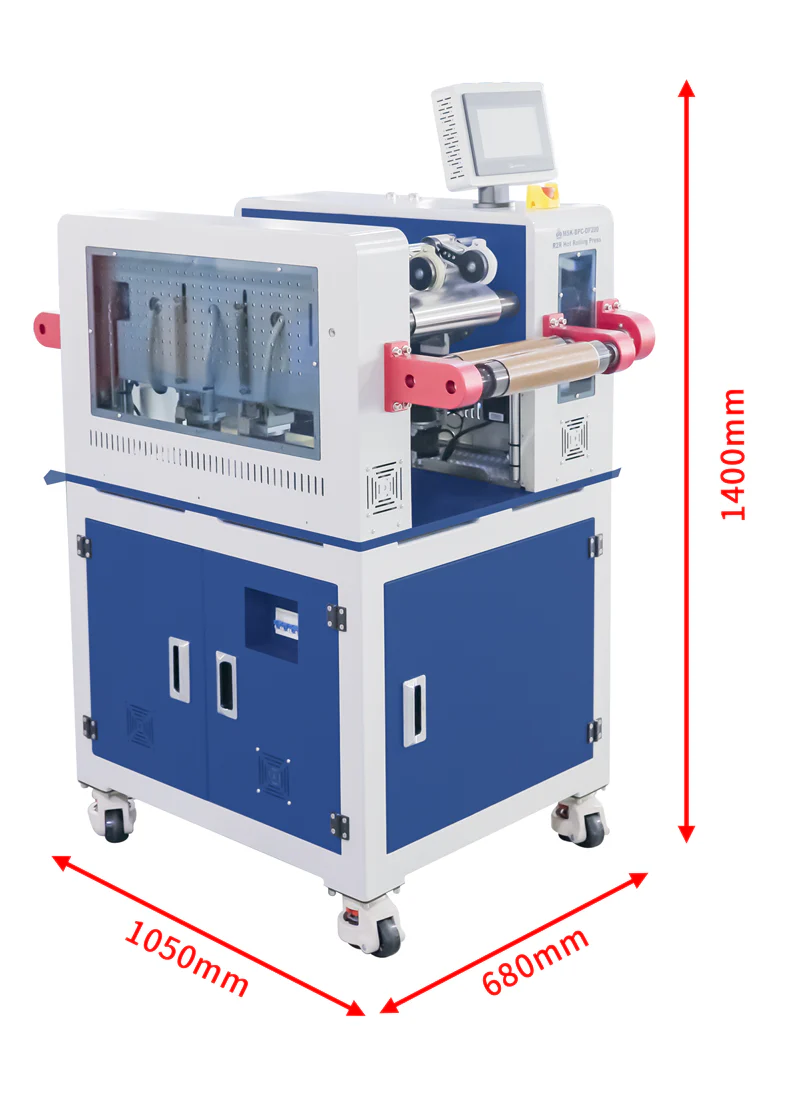

Hot Rolling Press with Asynchronous Speed for Dry Electrode / Solid State Electrolyte Fabrication (Max. 200mm W, 15T, 200 °C) - MSK-BPC-DF200

  MSK-BPC-DF200 is a three-roller continuous rolling press with various speeds to prepare a lithium-ion battery's dry electrode and solid-state electrolyte sheet. Three pairs of rolls can be independently controlled under a pressure of 8T Max.

SPECIFICATIONS:

Power	AC220±10%, single phase, 50/60Hz 6KW
Rollers	Roller materials: DC53 Steel Roller size: Ø150 mm x 220 mm Hardness: HRC 60-62 Roller Gap: 0 - 1.2 mm Gap accuracy: ± 0.001mm
Working Mechanism
Roller Temperature	200°C Max for short time (< 60 minutes) < 150oC for continuous Each roller temperature can be adjusted independently.
Maximum Electrode Size	180mm Max. (the SS substrate is 25 m long)  For the current version, the self-standing dry-electrode film length is limited to 20m. If customer need a longer dry-electrode film, please inform us and we will apply an upgraded design for the winding parts.  Five cardboards for electrode winding are included For the winding section of the dry-electrode, PVC Winding Reel is equipped. Slight manual adjustment is required to optimize the tension/speed on winding roll.
Rolling Pressure	15T Max., each roller pressure can be adjusted independently. Applied force resolution: <1T ± 30kg, >1T ± 0.5%
Rolling Speed	0.05- 1 m/min, each roller speed can be adjusted independently. For real dry-electrode experiment, we recommend the rolling speed is around 0.1-0.2 m/min (each roller speed is different, for example, roller 1: 0.1 m/min, roller 2: 0.12 m/min; roller 3: 0.15 m/min).
Lamination Function (Optional)	For lamination with current collector to make electrodes, please consider the roll-to-roll laminator MSK-BSL-H200
Recommended Working Environment	25 ± 3°C, no vibration or electromagnetic interference
Compliance	CE Certified NRTL certification is available upon request at an extra cost
