Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200
HomeStore

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200

MSK-BSL-H200 is a roll-to-roll hot laminator for forming trilayer composite. The protection layers can be used to protect the lamination layers during rolling press and then being removed after press.

SPECIFICATIONS:
Power
  •  ACAC220V±10%, 50/60Hz, single phase, 3.75 kW
Rollers
  • One stainless-steel roller, Ф120mm
  • One rubber roller, Ф120mm
Laminating Width
  • The roller width is 200 mm
  • The maximum width for lamination layers is 180 mm
Laminating Speed
  • Max. 1m/min
Lamination Pressure
  • Max. 0.6 T
 Lamination Gap
  • Max. 2 mm (gauge resolution is 1 um)
Lamination Temperature
  • Max. 120℃ (adjustable)
Winding Roller Diameter
  • Max. Ф200mm
  • Carboard diameter is 3" for loading on winding/unwinding roller
Machine Size
  • L1000 x W860 x H1500mm
Weight
  • ~600 kg
Compliance
  • NRTL or CSA certification is available upon request at the extra cost



$89,980.00
Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200—
$89,980.00

More Images

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200 - Image 2

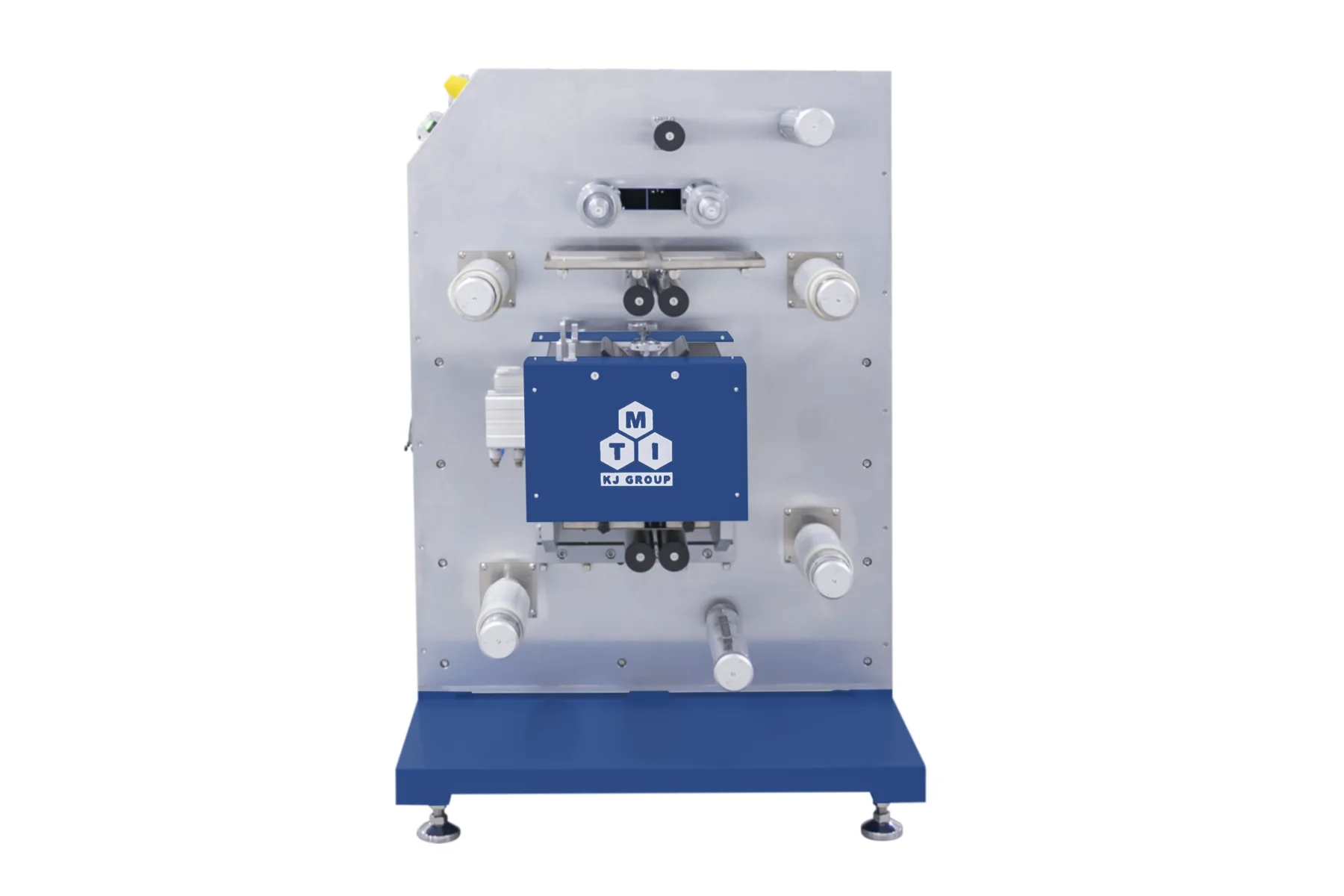

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200 - Image 3

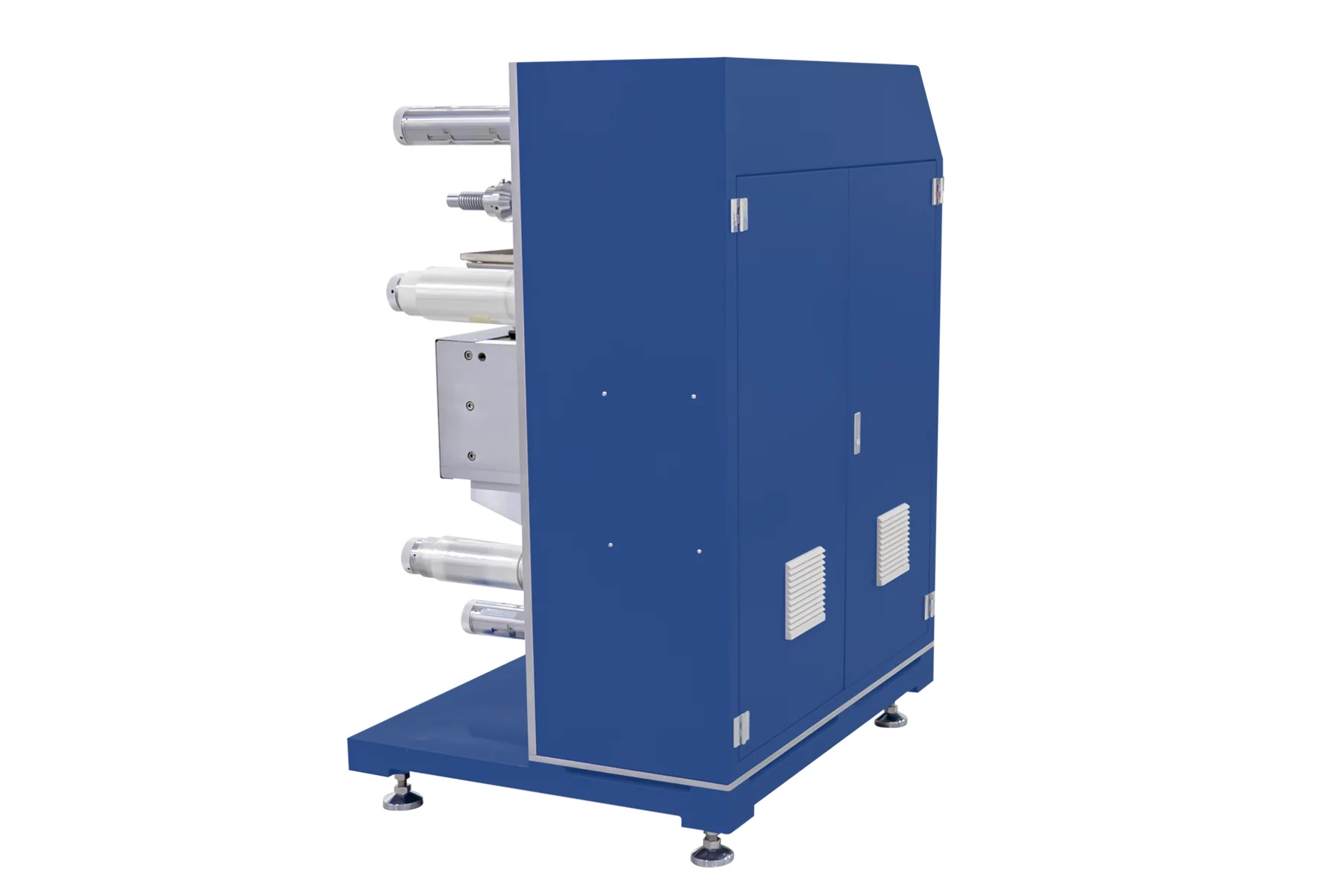

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200 - Image 4

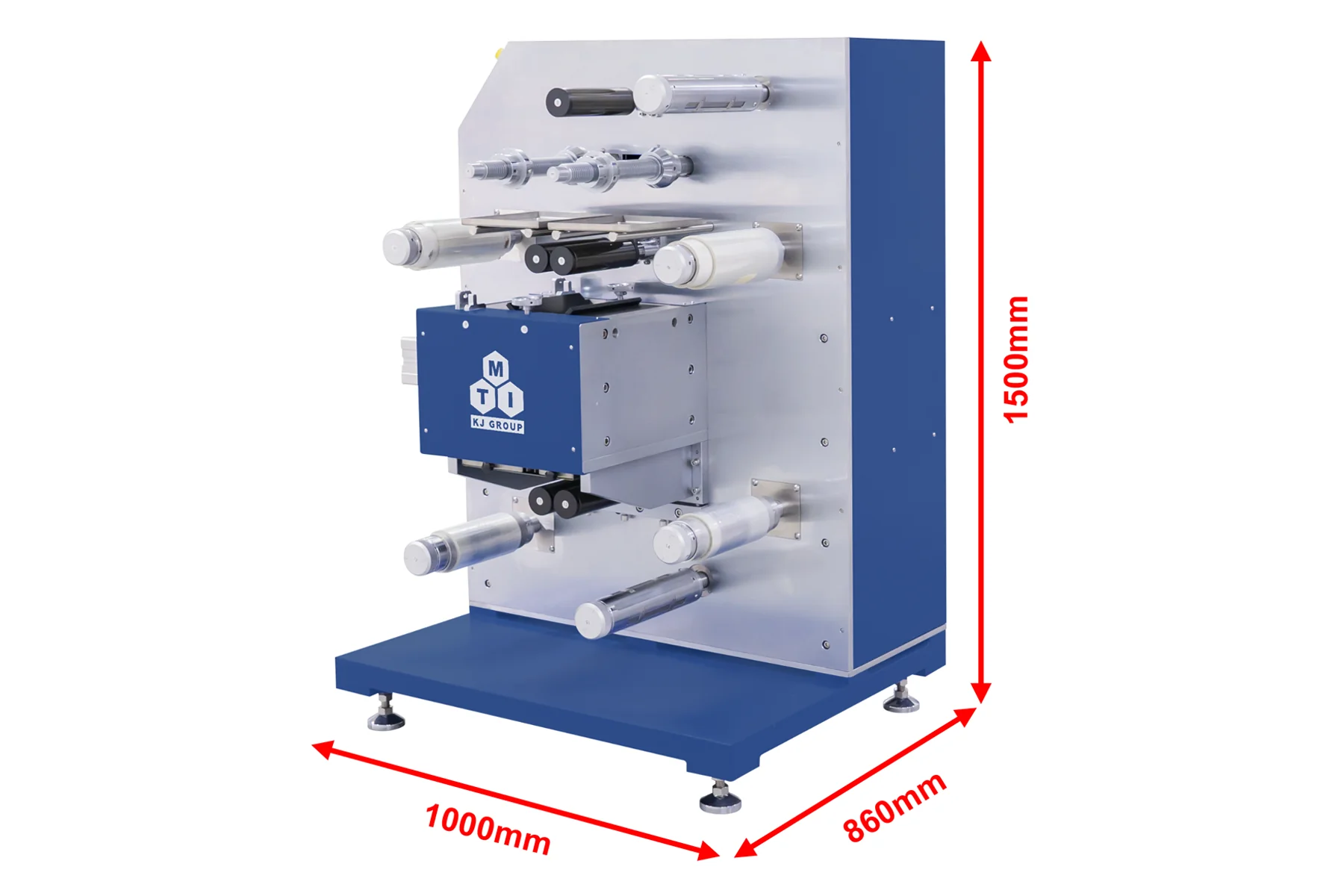

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200 - Image 5
