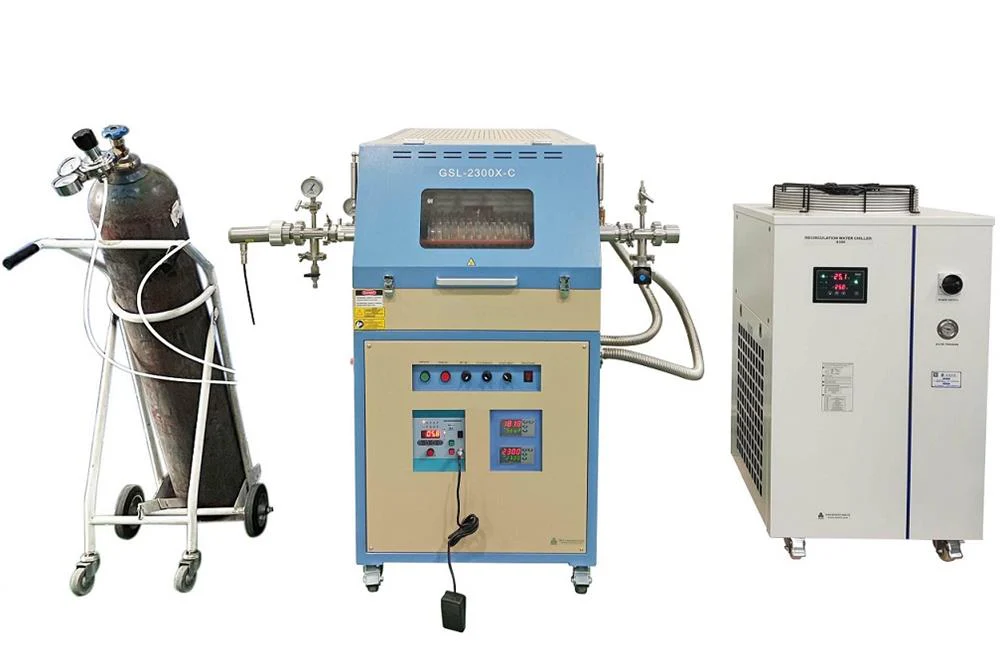

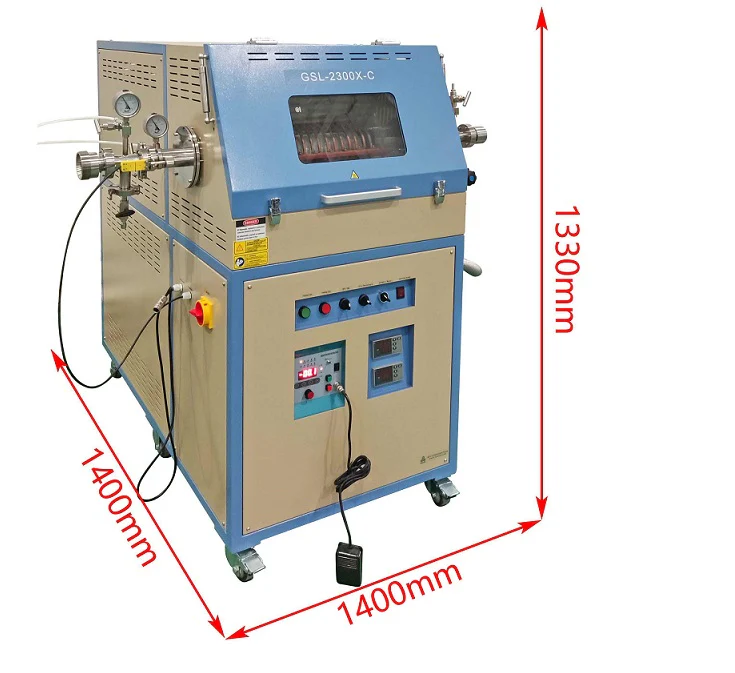

2300ºC Max. Induction heated Tube Furnace (30 mm ID Graphite Tube) with IR Temp.-Controlled - GSL-2300X-C

GSL-2300X-C is an induction heated horizontal tube furnace with an IR temperature sensor and controller and max. the working temperature of 2300ºC, 30 mm ID graphite tube with thermal insulation which is sealed in a 4" Quartz Tube with Flanges & Valves.

SPECIFICATIONS:

Induction Heater	Working Voltage: 208~240V AC, 50/ 60Hz, Three Phase Working Current: 96 Amp (100A breaker required) Max. Input Power: 35 KW Output Frequency: 80 - 200 kHz Adjustable Duty Cycle: 80% Air Cooling: Rear Fan Protection: Automatic water pressure, over-temperature, and overload protection

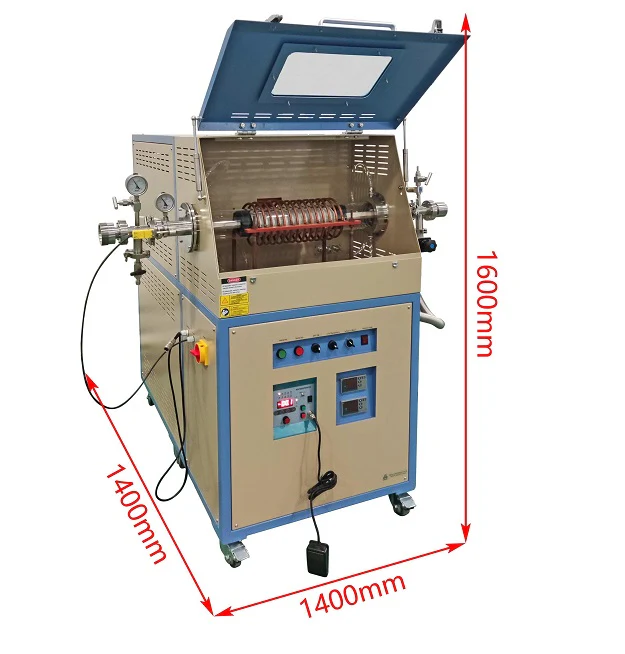

Induction coil and Heated Tube	Water cold induction Coil: 135 (ID) x 300 L, mm    Fused Quarzt tube:           100 (OD) x 90 (ID) x 700 (L) mm)  Graphite Tube:                  40(OD) x 30 (ID)  x 300 (L) mm  Thermal insulation:            High-purity carbon felt      YSZ ceramic coating for graphite tube ID is available upon request for carbon-sensitive material
Vacuum seal flanges	Vacuum flanges:   Left side: IR temperature sensor with gas-inlet and pressure gauge                               Right side:  KF 25 port for vacuum pump and the gas outlet valve Vacuum level:       10-2 torr by a mechanical pump and 10-5 torr by turbopump Optional:               Digital vacuum gauge up to 4x 10-5 torr is available at the extra cost.
Temp. Controller & Thermocouple	30 segments programmable for precise controls of heating rate, cooling rate, and dwell time. Temperature sensor:   IR senor ( made in Germany )  Max. working temperarure:  2300ºC  ( < 60 minutes ) Continuous Working Temp. Range: 1200ºC~2200ºC Constant temperature zone:    60 mm ±5 Max. Heating rate:  40/min≤160030/min1600-2300 Max. Cooling rate:   30/min1000—2300 +/- 2 ºC temperature accuracy.
Water Chiller	Water cooling with > 116 L/minute flow rate is required for cooling the induction coil. You may click the picture left to order a recirculating water chiller.
Vacuum Pump	Vacuum level:  5x10e-2 torr by the mechanical vacuum and  10e-5 torr by turbo-pump Please click the left to order a vacuum pump
Compliance	NRTL Certification is available upon request at extra cost, please contact our sales representatives for a price quote.
