800°C High Vacuum & Pressure Chamber Furnace (500x500x500 mm up to 3.5 bar) GSL-800-L
HomeStore

800°C High Vacuum & Pressure Chamber Furnace (500x500x500 mm up to 3.5 bar) GSL-800-L

800°C High Vacuum & Pressure Chamber Furnace (500x500x500 mm up to 3.5 bar) GSL-800-L

GSL-800-L is a high-vacuum and high-pressure chamber furnace with a maximum temperature of 800°C and pressure of up to 3.5 bar.. It features a chamber made of 310S stainless steel to ensure a cleanliness level of up to Class 100, and external heating. It can also perform vacuum sintering with a maximum vacuum level of 5.0*10^-3 Pa, particularly for the heat treatment of high-pressure oxygen environment superconducting materials (YBCO).

SPECIFICATIONS:

Power
  • AC Three-phase 480V 50/60HZ
  • 60KW
Working Chamber
  • Made of 310S stainless steel, chamber dimensions: 720mm * 900mm deep (volume: 366L)
    • Water cooling door
    • Usable space: 500mm-500mm-500mm (cubic space)
    • Internal components are all made of metal to ensure cleanliness.
    • φ12.7 gas inlet, controlled by an electromagnetic needle valve to regulate gas intake.
    • φ12.7mm exhaust port, controlled by an electromagnetic needle valve to regulate gas release
    • Reserved a KF40 exhaust port for high-pressure use.
  • Max. vacuum is 10-3 torr by mechanical pump and 10-5 by a turbopump
  • Max. working pressure (absolute pressure): 0.25MP (750°C)0.35MP (500°C)
  • Equipped with pressure sensors and electromagnetic pressure relief valves, providing automatic pressure maintenance and overpressure relief functions to ensure equipment safety.
  • Features both inner and outer tube temperature monitoring.
  • Includes a 1-channel mass flow meter for the intake system with a flow rate of 5L/min.
  • Equipped with a mechanical pump vacuum system that can be started automatically or manually.
Heating
  • Long-term Operating Temperature: 800 (In a Flowing Atmosphere/Vacuum State)
  • Temperature Control Thermocouples: Seven K-type thermocouples (Three inside the chamber and four outside the chamber)
  • Four heating zones (3 circular ones + 1 bottom) to create a more uniform temperature field
  • Total Heating Zone Length: 900mm (370+310+220)Temperature uniformity: ±10°C (in a flowing atmosphere)
  • Heating Rate: ≤5/min
  • Heating Elements: Molybdenum-Iron-Chromium-Aluminum Resistance Wire
Temperature Controler

  • Eurothero EPC3000
  • PID automatic temperature control system.
  • Intelligent 24-segment programmable control
  • Temperature accuracy: +/- 5°C
  • DB9 port for PC communication

Control System
  • The temperature control system allows for setting up heating, constant temperature, and cooling curves through a touchscreen interface
  • Real-time monitoring of chamber pressure, vacuum level, and temperature is displayed on the touchscreen.
  • It provides the capability to perform constant pressure control within a range of 0.01MPa to 0.2MPa
  • Data can be saved, recorded, and downloaded, and process curves can be generated and saved for future experiments.
Water Chiller (Optional)

  • Power Supply: AC220V 50Hz

  • Power: 3.5KW

  • Working Current: 3.4~18.1A

  • Cooling Capacity: 26826 Btu/h

  • Water Tank Capacity: 40L

  • Inlet and Outlet: Rp1"

  • Maximum Pump Water Flow Rate: 75L/min
Vacuum Pump (optional)
  • Standard mechanical pump, three-phase VRD-36, can achieve a vacuum level of 10-2 torr
  • With a molecular pump, the vacuum level can reach 10-5 torr.

Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost



$59,995.80

Original: $199,986.00

-70%
800°C High Vacuum & Pressure Chamber Furnace (500x500x500 mm up to 3.5 bar) GSL-800-L—

$199,986.00

$59,995.80

More Images

800°C High Vacuum & Pressure Chamber Furnace (500x500x500 mm up to 3.5 bar) GSL-800-L - Image 2

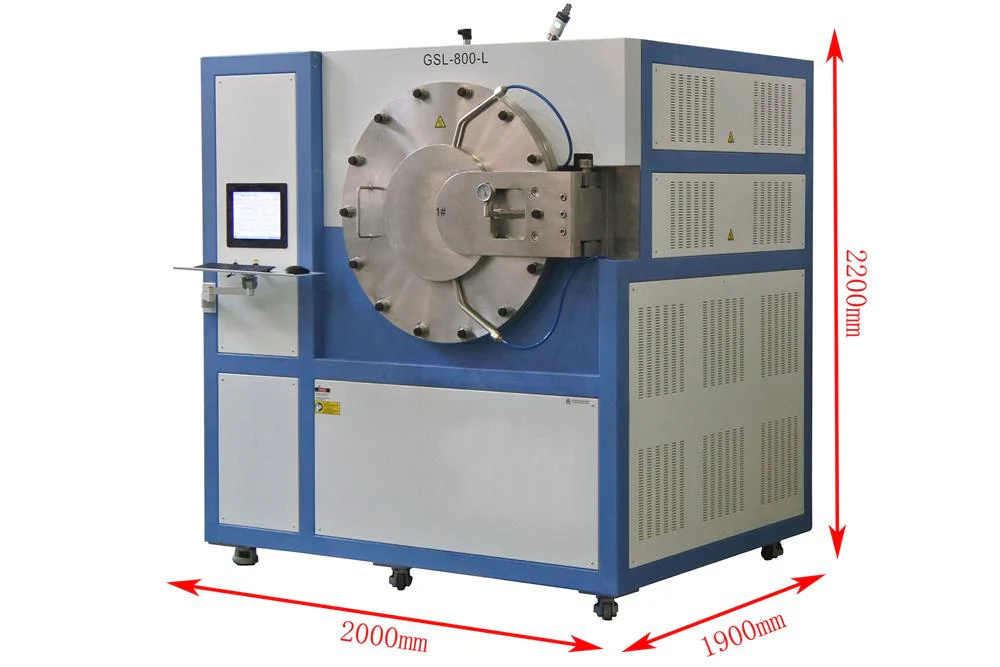

800°C High Vacuum & Pressure Chamber Furnace (500x500x500 mm up to 3.5 bar) GSL-800-L - Image 3
