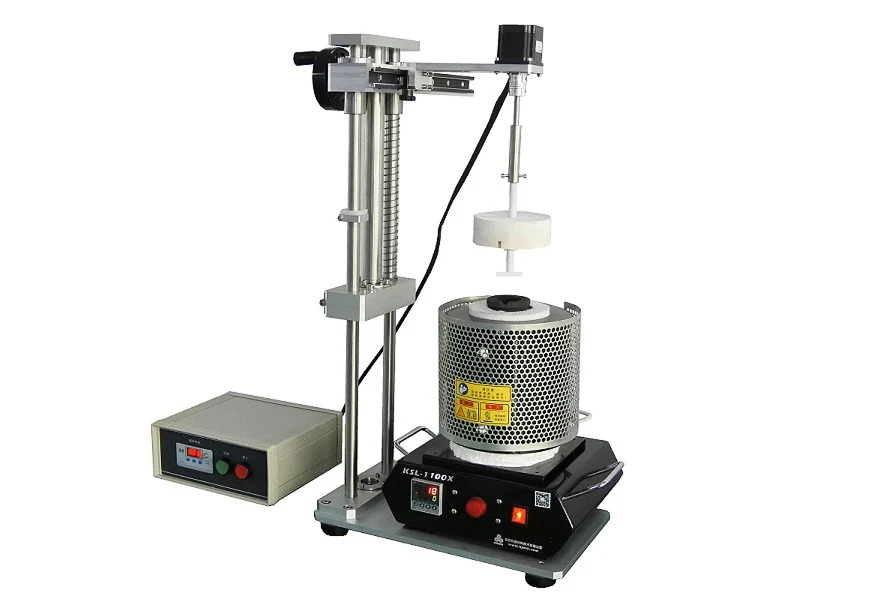

1100°C Crucible Melting Furnace with Stirring Function for Glovebox - KSL1100XSVRM

KSL-1100X-SV-RM is a compact crucible melting furnace designed for melting Li, Mg, and air-sensitive alloys in gloveboxes up to 1100ºC Max. BN stirring blade and rotating mechanism with vertical movement are included to make uniform alloys.

Specifications:

Power	120VAC (50/60Hz), 20 A 1500 VA Power cable and Plug is included 208-240 VAC is also available upon request.
Temperature Controller	Precise 30-segment programmable temperature controller PID and Autotune as well as overheating protection +/- 1ºC accuracy
Working Temperature	Continuous: 1000 ºC  Max.: 1100 ºC < 1 hrs
Heating Chamber & Crucible size	Heating Chamber size: 58 mm ID x 158 mm H One high-purity graphite crucible is included 38mm ID x 125mm H Please click the picture left for a detailed size Quartz, BN, or Stainless steel crucibles are available upon request at extra cost
Stirring Mechanism	One rotating fixture is included with the melting furnace, which can be separated to be placed in a glovebox via the antechamber A stirring rod made of Boron Nitrite is included to insert into the crucible by the movable rotary mechanism Optional: SS316 stirring rod are available at extra cost. (please see the pic on the left) A fibrous alumina plate is included on the top of the blade for thermal insulation Rotation Speed: 0 - 500 rpm variable via a digital speed controller Vertical moving distance: 5 - 200 mm manually adjustable
Dimension	( click the picture to see the size )
Net Weight	35 Lbs
Certificate	CE Certified NRTL certificate is available at the extra cost
