1100C Compact Crucible Melting Furnace w/ Programmable Controller - KSL1100XSV
HomeStore

1100C Compact Crucible Melting Furnace w/ Programmable Controller - KSL1100XSV

1100C Compact Crucible Melting Furnace w/ Programmable Controller - KSL1100XSV

KSL-1100X-SV-LD is a compact crucible melting furnace designed for melting noble metals, such as Al, Au, Li In, Li, Mg, etc. in the air up to 2010ºF (1100ºC Max.), and also can be used as an annealing and sintering furnace for material research. 30-segment programmable temperature controller is built-in with +/- 1ºC accuracy. The compact furnace can be placed inside the glove box through an antechamber ( >= 360 mm ID) to melt air-sensitive metal, such as Al, Li, Mg, etc. ( Add heating shield for thermal protection since April 2023)

Specifications:
Structure
  • High-purity fiber alumina liner for energy saving
  • Stainless steel protect cover for the best safety
  • Crucible & Tong are included for immediate use
Power
  • 110VAC ( 50/60Hz), 1500W Max. 15A breaker required
  • Power cable and Plug included
Temperature Controller
  • Precise 30-segment programmable temperature controller
  • PID and Autotune as well as overheating protection
  • +/- 1ºC accuracy
Working Temperature
  • Continuous: 1000 ºC
  • Max.: 1100 ºC < 1 hrs
Chamber
  • Top Opening of the Chamber: 55 mm ID
  • Interior Dimension: 55 mm ID x 145mm H
Crucible size
Heat Shield
  • The heat shield is included in the standard package.
Certificate
  • CE Certified
  • NRTL certificate is available at the extra cost
Application notes
  • The furnace also can be used as a small sintering furnace if you use a 50 mm dia or less Alumina crucible
  • You may place the compact furnace inside the glovebox to melt and sinter air-sensitive materials ( Pic. 1)
  • Add a mixing blade and quartz tube, the furnace can be modified into a high-temp mixer for polymer and alloy (Pic. 2)
  • Also, this furnace can be modified into a high vacuum furnace (Pic. 3

Vacuum Glove Box Pic. 1 Pic.2Pic.3





Select Voltage
From $1,498.00
1100C Compact Crucible Melting Furnace w/ Programmable Controller - KSL1100XSV—
$1,498.00

More Images

1100C Compact Crucible Melting Furnace w/ Programmable Controller - KSL1100XSV - Image 2

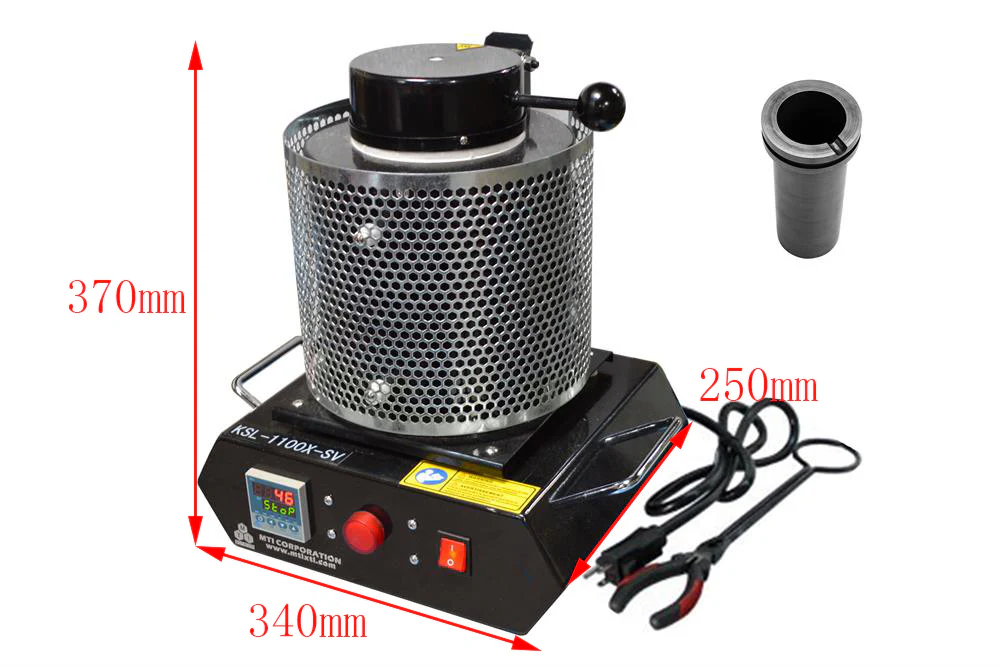

1100C Compact Crucible Melting Furnace w/ Programmable Controller - KSL1100XSV - Image 3
