1250 ºC Compact Vertical Box Furnace for Using inside of Glovebox-KSL-1250X-SV-CT

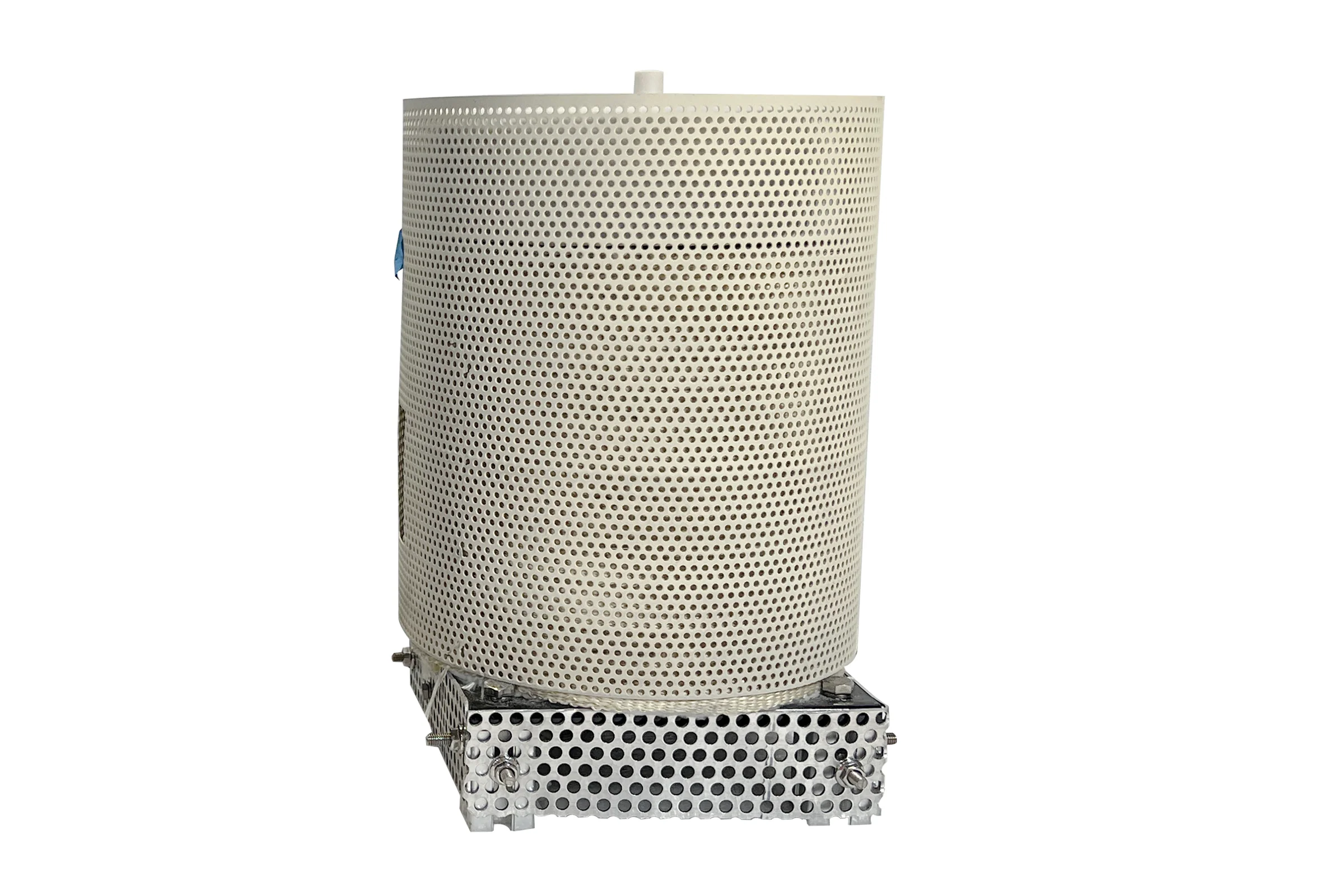

Structure

• SS316 Case for anti-corrosive processing and thermal protection
• The compact vertical furnace has a heating chamber of 2" Dia x 6" H (55mm I.D x 145mm H)
• High-purity fiber Alumina liner for energy saving
• The furnace is small enough to put inside the Glovebox via an antechamber with an ID of 350 mm in diameter
• The separate temperature controller for remote operation in the outside glovebox
• The furnace surface temperature < 80 °C

• Single Phase, AC110V±10%, 50/60Hz
• Work: 1.5 KW Max.

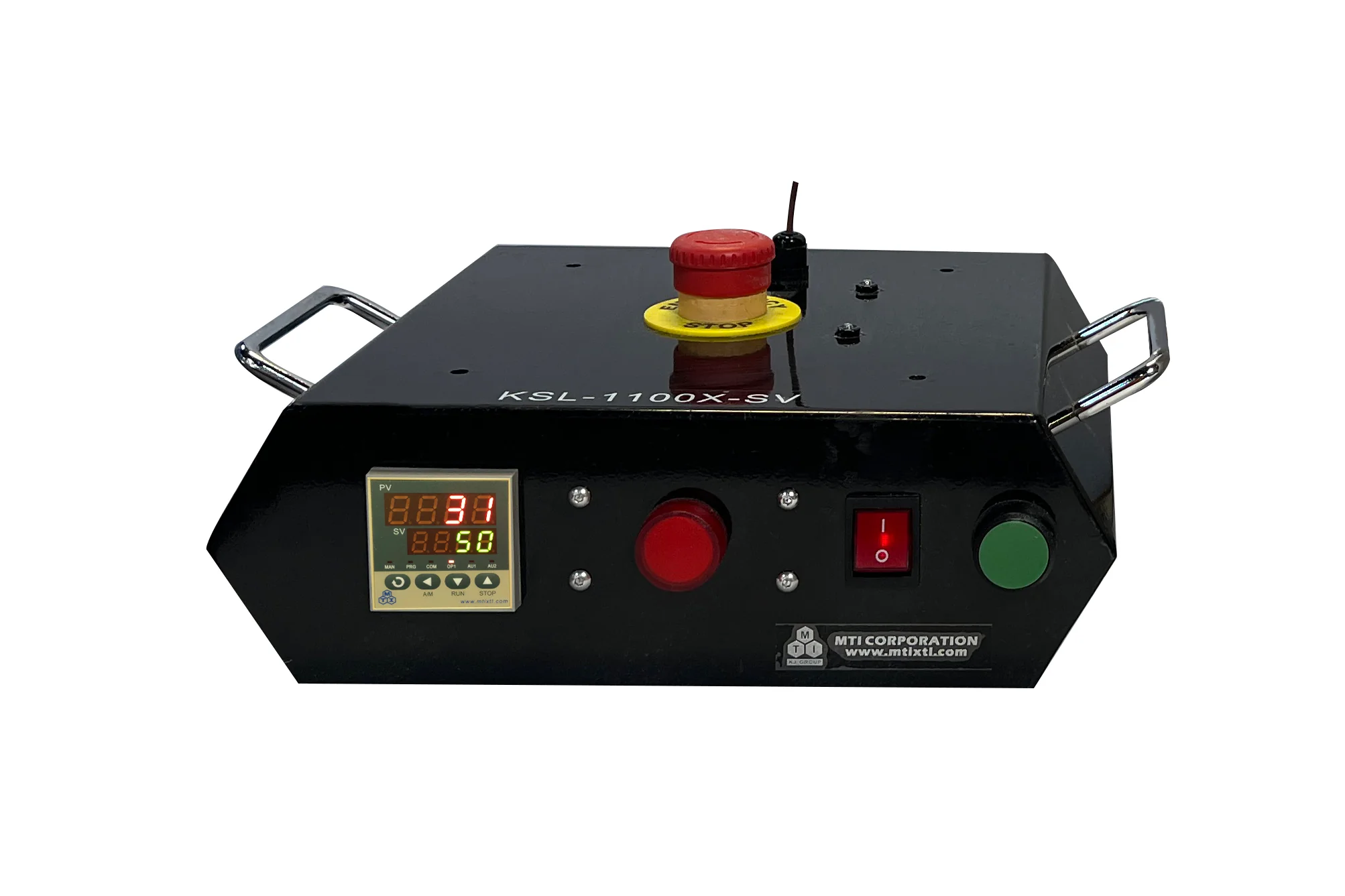

Temperature Controller

• Precise 30-segment programmable temperature controller
• PID and Autotune as well as overheating protection
• +/- 1˚C accuracy

Working Temperature

• Continuous Working Temperature ≤ 1200˚C
• Max. Working Temperature ≤ 1250˚C less than 2 hours

• 20 ˚C/ min, recommended less than 10 ˚C/ min

Heating Chamber

•  ID 55 mm x Height 145 mm
• Please click here to order a crucible

• A Stainless-steel shield is included for thermal protection
• The furnace's lid is made of coated fibrous Alumina

• CE Certified
• NRTL Certificate is available at an extra cost

Application Note

• Both the heating chamber and the temperature controller unit can be placed into the < 360mm Antechamber of the Glovebox, and it can be operated in the Glovebox for conducting air-sensitive samples
• The temperature controller can also be placed outside the glovebox, but requires a KF40 feedthrough。 Please order the feedthrough if you decide to put the controller outside glovebox
