Anti-Corrosive Rotary Tube Furnace w/ 2" ID Double Layer Tube, 800C @ 3 Bar Pressure -OTF-800X-III-R2
HomeStore

Anti-Corrosive Rotary Tube Furnace w/ 2" ID Double Layer Tube, 800C @ 3 Bar Pressure -OTF-800X-III-R2

Anti-Corrosive Rotary Tube Furnace w/ 2" ID Double Layer Tube, 800C @ 3 Bar Pressure -OTF-800X-III-R2

OTF-800X-III-R2 is a three-zones rotary tube furnace designed for use with strong corrosive gases such as HCL and CH4.  The processing tube is made of the double-layer structure of quartz and SS310S and the flange is made of PETF and anti-corrosive rotation fixture, which allows the rotary furnace working at max. 800oC at 3 bar pressure.

Specifications
Furnace Construction
  • Special design processing tube with a double-layer structure, which allows furnace running HCL corrosive gas at 3 bar pressure up to 800°C  Please refer the Pic left)
  • The sealing flanges are made of PTFE and the rotating fixture is made of anti-corrosive steel with Teflon coating.
  • Three heating zone rotary furnaces with max. the working temperature of 800ºC @ +/- 1oC accuracy.
Heating Zone length
  • Three heating zones: each zone length: 150 + 300 + 150 (mm)  total heating zone length 600 mm
  • Constant temperature zone: 300 mm within +/- 2oC if three zones at the same temperature.
Processing tube & Sealing Flange
  • The double-layer structure has inside quartz tube and outside SS310A high-temperature stainless steel.
    • Quartz tube size:   52mm ID x 60 mm OD x 1400mm L,
    • SS310S tube:        62 mm ID x 70mm OD x 1300 mm L
  • Sealing flanges, gas fittings, and valves are made of PTFE
  •  Anti-corrosive Magnetic Fluid Sealed Swivel Coupling
  •
Vacuum Level:
  • 10 - 2 torr by the mechanical pump
  • 10 - 4 torr by a turbopump
  • Please click the picture left to order a pump as an option
Max. Working Temperature
&  Working Pressure
  • 800°C for continuously and 900 °C Max for < 1 hour
  • Max. working pressure 3 bars
  • Max. Vacuum:  4.5x10-2 torr (<0.1mtorr/s leaking rate)
Heating Rate
  •  Recommend: 10 °C/min
Temperature Controllers
  • Three PID digital temperature controllers with 30 segment programmable,  +/- 1°C
Thermocouple
Tube rotating Speed
  •  0 - 10 RPM variable
Furnace tilt angle
  • 0~30° via the electric motor
Power
  • 208 - 240V single phase (30 A Breaker required)  50/60Hz
  • 5 KW Max
Laptop, software & WiFi Control (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS01) enables a user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • Note:   The software is only compatible with MTI’s Yudian Temperature Controller


Compliance
  • CE Certified
  • NRTL (UL61010)  or CSA certification is available at extra cost.  please click marks below to learn details )





$14,999.40

Original: $49,998.00

-70%
Anti-Corrosive Rotary Tube Furnace w/ 2" ID Double Layer Tube, 800C @ 3 Bar Pressure -OTF-800X-III-R2—

$49,998.00

$14,999.40

More Images

Anti-Corrosive Rotary Tube Furnace w/ 2" ID Double Layer Tube, 800C @ 3 Bar Pressure -OTF-800X-III-R2 - Image 2

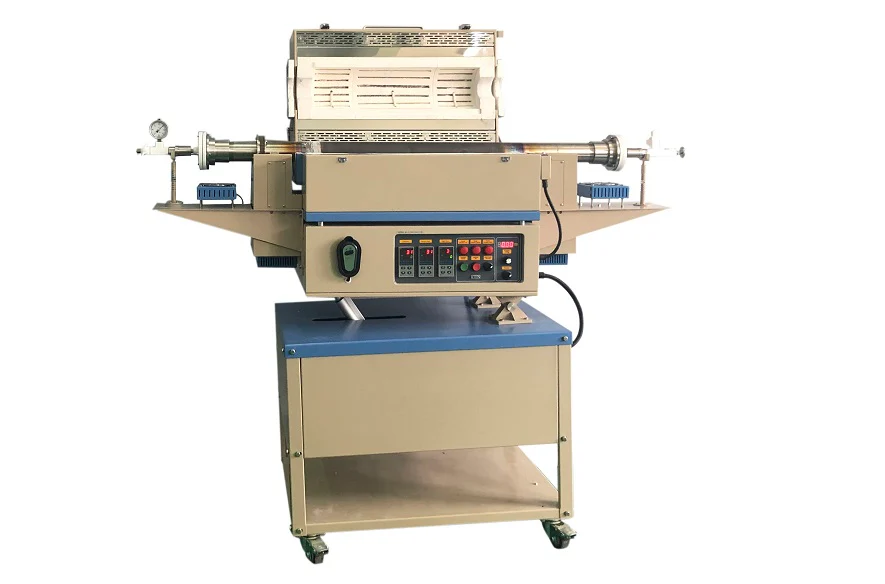

Anti-Corrosive Rotary Tube Furnace w/ 2" ID Double Layer Tube, 800C @ 3 Bar Pressure -OTF-800X-III-R2 - Image 3
Anti-Corrosive Rotary Tube Furnace w/ 2" ID Double Layer Tube, 800C @ 3 Bar Pressure -OTF-800X-III-R2 - Image 4

Anti-Corrosive Rotary Tube Furnace w/ 2" ID Double Layer Tube, 800C @ 3 Bar Pressure -OTF-800X-III-R2

OTF-800X-III-R2 is a three-zones rotary tube furnace designed for use with strong corrosive gases such as HCL and CH4.  The processing tube is made of the double-layer structure of quartz and SS310S and the flange is made of PETF and anti-corrosive rotation fixture, which allows the rotary furnace working at max. 800oC at 3 bar pressure.

Specifications
Furnace Construction

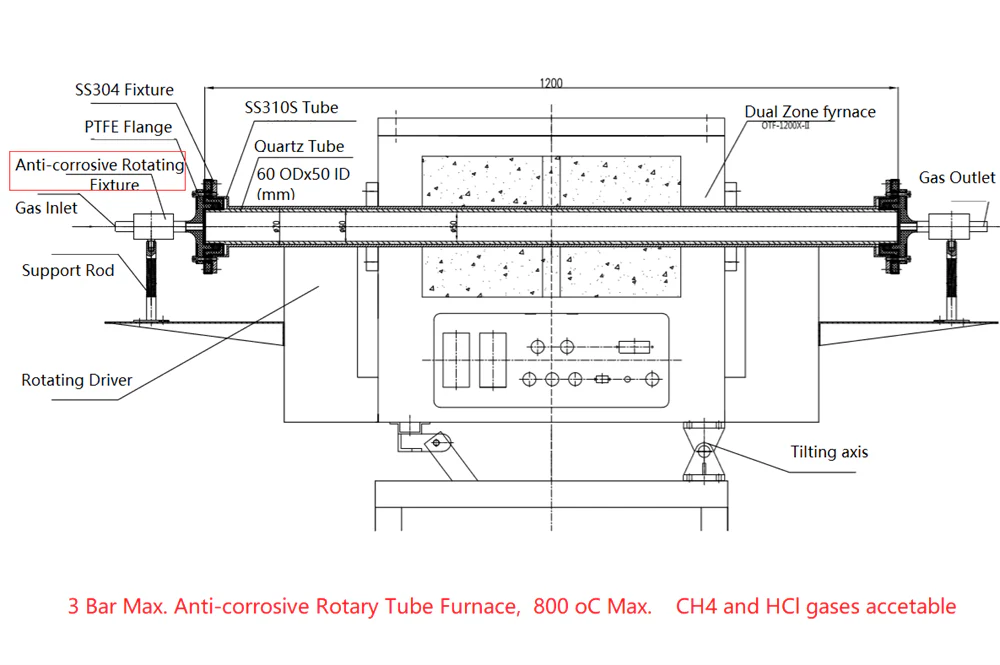

  • Special design processing tube with a double-layer structure, which allows furnace running HCL corrosive gas at 3 bar pressure up to 800°C  Please refer the Pic left)
  • The sealing flanges are made of PTFE and the rotating fixture is made of anti-corrosive steel with Teflon coating.
  • Three heating zone rotary furnaces with max. the working temperature of 800ºC @ +/- 1oC accuracy.
Heating Zone length
  • Three heating zones: each zone length: 150 + 300 + 150 (mm)  total heating zone length 600 mm
  • Constant temperature zone: 300 mm within +/- 2oC if three zones at the same temperature.
Processing tube & Sealing Flange
  • The double-layer structure has inside quartz tube and outside SS310A high-temperature stainless steel.
    • Quartz tube size:   52mm ID x 60 mm OD x 1400mm L,
    • SS310S tube:        62 mm ID x 70mm OD x 1300 mm L
  • Sealing flanges, gas fittings, and valves are made of PTFE
  •  Anti-corrosive Magnetic Fluid Sealed Swivel Coupling
  •
Vacuum Level:
  • 10 - 2 torr by the mechanical pump
  • 10 - 4 torr by a turbopump
  • Please click the picture left to order a pump as an option
Max. Working Temperature
&  Working Pressure
  • 800°C for continuously and 900 °C Max for < 1 hour
  • Max. working pressure 3 bars
  • Max. Vacuum:  4.5x10-2 torr (<0.1mtorr/s leaking rate)
Heating Rate
  •  Recommend: 10 °C/min
Temperature Controllers
  • Three PID digital temperature controllers with 30 segment programmable,  +/- 1°C
Thermocouple
Tube rotating Speed
  •  0 - 10 RPM variable
Furnace tilt angle
  • 0~30° via the electric motor
Power
  • 208 - 240V single phase (30 A Breaker required)  50/60Hz
  • 5 KW Max
Laptop, software & WiFi Control (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS01) enables a user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • Note:   The software is only compatible with MTI’s Yudian Temperature Controller


Compliance
  • CE Certified
  • NRTL (UL61010)  or CSA certification is available at extra cost.  please click marks below to learn details )
