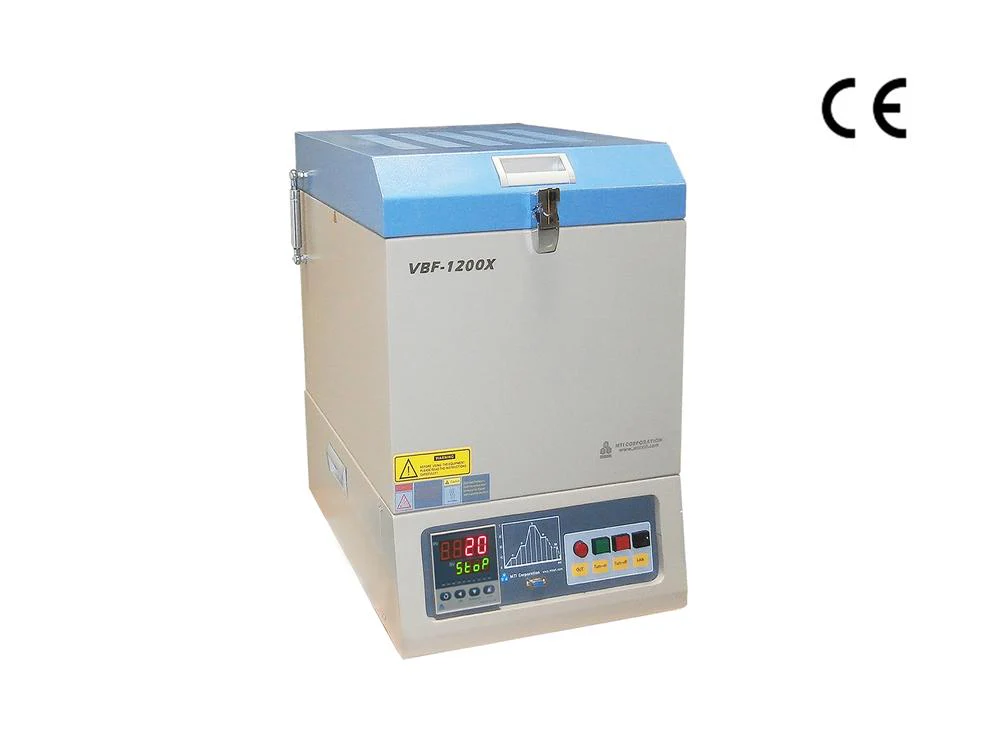

1200°C Top-loading Muffle Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X

1200°C Top-loading Muffle Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X

1200°C Top-loading Muffle Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X

Features

The Crucible Furnace has a large chamber (9.5"d x 8.6"H, 9 liters ) for sintering ceramic parts and components in Lab.
High-quality ceramic fiber insulation
Working temperature <1200°C

SPECIFICATION:

Power	AC 208 ~ 240V, Single Phase, 50/60Hz, 3.5 kVA Power cable is included but without a plug. Please contact MTI to order a plug
Max. Temperature	Continuous working temperature: < 1200°C
Max. Heating Rate	<30 °C /min
Temperature controller	PID automatic control and auto-tune function. 30 programmable segments for precise process Built-in protection for over-heated and broken thermocouple
Thermocouple	Type K thermocouple
Laptop and software Control (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use. *Labview Based Temperature Control System (MTS03)*enables users to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
Temperature Stability	+/- 1 °C
Heating Element	Fe-Cr-Al Alloy doped by Mo
Certificate	CE Certified NRTL Certification is available upon request, additional charges will apply

$1,499.40

Original: $4,998.00

-70%

1200°C Top-loading Muffle Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X—

$4,998.00

$1,499.40

More Images

1200°C Top-loading Muffle Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X - Image 2

1200°C Top-loading Muffle Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X - Image 3

1200°C Top-loading Muffle Furnace with 9.5"Dia x 8.6"H ( 9 Liter) Chamber & Controller - VBF-1200X

Features

The Crucible Furnace has a large chamber (9.5"d x 8.6"H, 9 liters ) for sintering ceramic parts and components in Lab.
High-quality ceramic fiber insulation
Working temperature <1200°C

SPECIFICATION:

Power	AC 208 ~ 240V, Single Phase, 50/60Hz, 3.5 kVA Power cable is included but without a plug. Please contact MTI to order a plug
Max. Temperature	Continuous working temperature: < 1200°C
Max. Heating Rate	<30 °C /min
Temperature controller	PID automatic control and auto-tune function. 30 programmable segments for precise process Built-in protection for over-heated and broken thermocouple
Thermocouple	Type K thermocouple
Laptop and software Control (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use. *Labview Based Temperature Control System (MTS03)*enables users to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces.
Temperature Stability	+/- 1 °C
Heating Element	Fe-Cr-Al Alloy doped by Mo
Certificate	CE Certified NRTL Certification is available upon request, additional charges will apply
