1200 Vertical Crucible Furnace with 22L Heating Chamber ( 12.5"IDx11"H, 22 L) - VBF-1200X-300
HomeStore

1200 Vertical Crucible Furnace with 22L Heating Chamber ( 12.5"IDx11"H, 22 L) - VBF-1200X-300

1200 Vertical Crucible Furnace with 22L Heating Chamber ( 12.5"IDx11"H, 22 L) - VBF-1200X-300

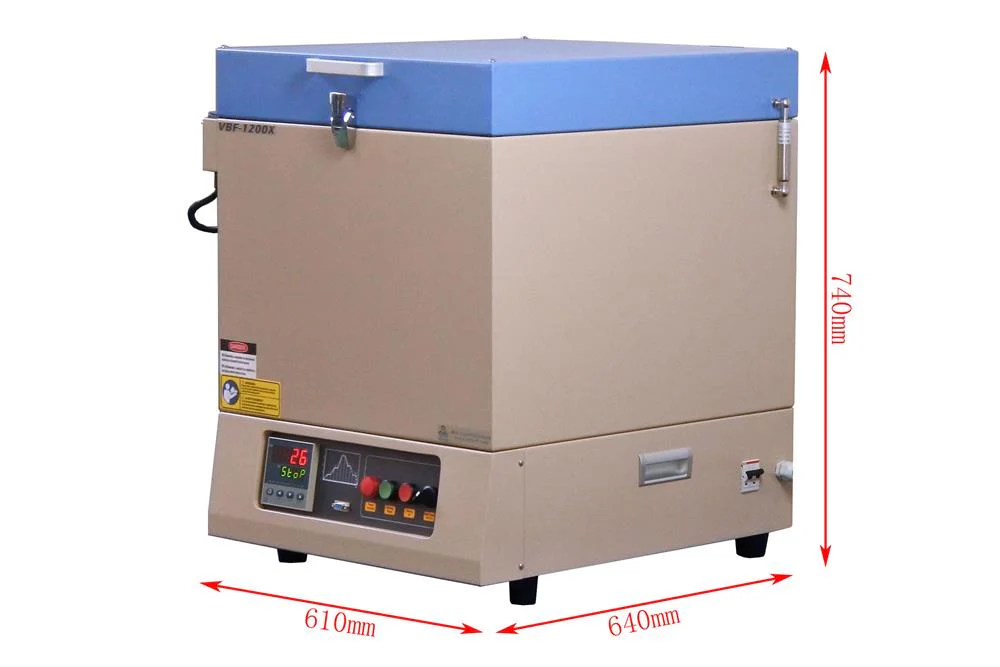

VBF-1200X-300 is a 23L12.5"IDx11" H) crucible furnace, with a double shell structure, 30-segment programable temperature control, and a K-type thermocouple. It is made of high-purity alumina fiber material, the highest temperature can reach 1200 ° C, the continuous working temperature is 1100 ° C, and the temperature control precision is ± 1 ° C. The furnace has the advantages of uniform temperature fields, low surface temperature, fast temperature rise and drop, energy saving, and so on. It is an ideal product for high-temperature sintering, metal annealing, and quality inspection in universities, scientific research institutes, and industrial and mining enterprises.

SPECIFICATION:
Features

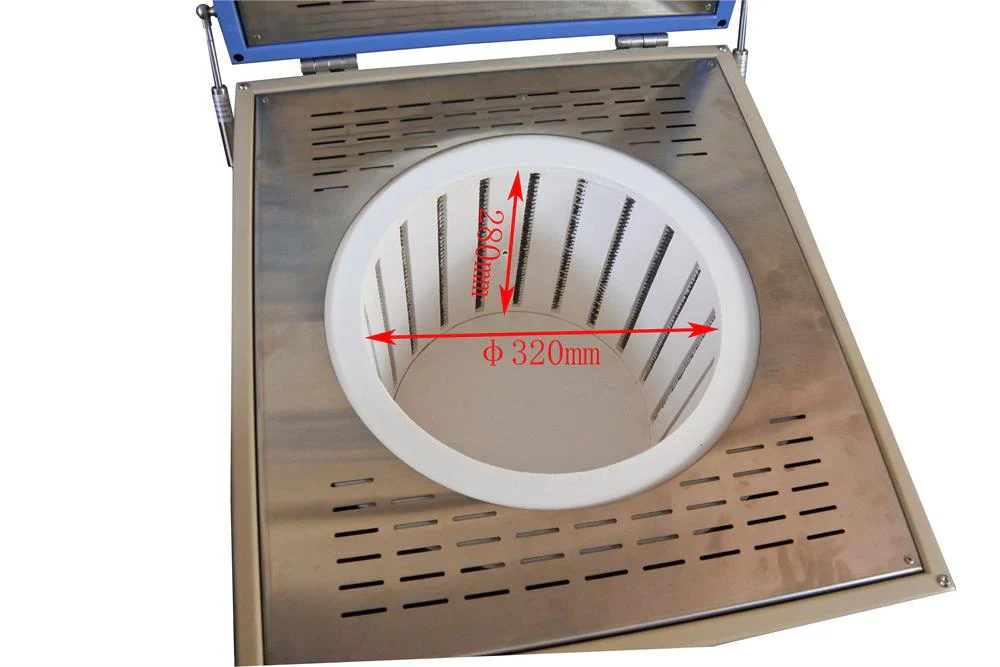

  • The large chamber φ320 x H280mm, 22 liters ( 12.5"IDx11" H)
  • High-purity alumina fiber provides excellent uniformity and energy efficiency.
  • The heating element is embedded in the insulation for maximum heat transfer to the chamber.
  • Overheat and thermocouple burnout protection.
  • Power cut-off function when the door is opening.
  • Refractory bricks at the bottom of the furnace can prevent the lining from being worn.
  • Double Layer steel structure with air cooling
  • Hinged-type cover for easy sample loading
Specifications
  • AC 208 V, single phase50/60Hz
  • 5.5KW Max.
  • Max Temp: 1200 (≀30min)
  • Continuous working Temp: 1100
  • Recommended Heating Rate: ≀10/min
  • Heating Chamber: φ320*280mm, 22 liters)
Temperature Controller
  • PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
  • Built-in overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • +/- 1 ÂșC temperature accuracy.
  • Two S-type thermocouples (one for each zone).
  • DB9 Communications Port.
  • Optional:
    • The furnace may be operated by a PC by installing a control module. Please order an MTS-02 control module at extra cost.
    • If you order the PC control module and the furnace, we will install and test it before shipping. We recommend you order a computer laptop from us to avoid software installation problems. For more information please click here.
Compliance
  • CE Certified
  • NRTL Certification is available upon request, additional charges will apply



$6,998.00
