1000°C Vertical Crucible Furnace with 4.7" Dia x 8" H Chamber & SS316 Case - VBF1200S
1000°C Vertical Crucible Furnace with 4.7" Dia x 8" H Chamber & SS316 Case - VBF1200S
SPECIFICATION:
Structure
SS316 case for anti-corrosive processing
The crucible furnace has a heating chamber of 4.7" D x 8" H, (120 mm ID x 200 mm H)
The separated temperature controller for remote operation
The compact furnace can be put in the glovebox via an antechamber
Processing tubes are not included
An optional 4" processing tube with a flange can be installed as a vertical or horizontal tube furnace
Power
AC 110V, Single Phase 50/60Hz
1.5KW Max.
Max. Temperature
Max. 1100°C for short time <1hour
Continuous working temperature: <1000°C
Max. Heating Rate
20 °C /min Max.
SS316 Reaction Vessel (Optional, not included)
The stainless steel 316 reaction vessel consists of:
One SS316 processing tube
One DN80ISO-K top flange with six 1/4" compression tube ports
One alumina spacer is included for heating insolation and adapting the reaction vessel
When using the SS316 reaction vessel, the maximum temperature is 800°C, continuous 600°C
Tube dimension: Ø 76 x Ø 70 x D 290 mm
Max. Vacuum: 10-6 torr by turbo pump
Max. positive pressure: 0.2 Mpa ( 2 bar
Please select the reaction vessel on the options bar
Temperature Controller
Two digital temperature controller is built-in a separated box with +/- 1ºC accuracy
One controller and T/C is for controlling
PID automatic control and auto-tune function.
30 programmable segments for precise process
Built-in protection for over-heated and broken Thermal couple.
Another one is for monitoring furnace running and cut-off power if the furnace overheated
Two Omega K-type thermal couples are included
One for furnace temperature control
One for temperature monitoring inside the chamber
RS485 port installed for PC operation
Dimension
Control Unit: 340mm L x 300mm W x 145mm H
Furnace: 350mm L x 265mm W x 390mm H
Net Weight
30 kg
Shipping package size
45" x 28" x 35" (after crating)
Shipping weight
260 lbs
Warranty
One-year limited warranty (Consumable parts are not covered by the warranty)
Certificate
CE Certified
NRTL Certification is available upon request, additional charges will apply
Operation Instructions
Optional
SS316 crucible is available upon request at extra cost and which use as the melting furnace for low melting point metal or molten salt up to 700°C (Pic. 1)
This furnace can be modified into a vacuum and high pressure furnace as Pic. 2 , 3, 4
Pic. 1Pic. 2 Pic. 3
Select Reaction Vessel
From $1,499.40
Original: $4,998.00
-70%
1000°C Vertical Crucible Furnace with 4.7" Dia x 8" H Chamber & SS316 Case - VBF1200S—
$4,998.00
$1,499.40
More Images
1000°C Vertical Crucible Furnace with 4.7" Dia x 8" H Chamber & SS316 Case - VBF1200S
SPECIFICATION:
Structure
SS316 case for anti-corrosive processing
The crucible furnace has a heating chamber of 4.7" D x 8" H, (120 mm ID x 200 mm H)
The separated temperature controller for remote operation
The compact furnace can be put in the glovebox via an antechamber
Processing tubes are not included
An optional 4" processing tube with a flange can be installed as a vertical or horizontal tube furnace
Power
AC 110V, Single Phase 50/60Hz
1.5KW Max.
Max. Temperature
Max. 1100°C for short time <1hour
Continuous working temperature: <1000°C
Max. Heating Rate
20 °C /min Max.
SS316 Reaction Vessel (Optional, not included)
The stainless steel 316 reaction vessel consists of:
One SS316 processing tube
One DN80ISO-K top flange with six 1/4" compression tube ports
One alumina spacer is included for heating insolation and adapting the reaction vessel
When using the SS316 reaction vessel, the maximum temperature is 800°C, continuous 600°C
Tube dimension: Ø 76 x Ø 70 x D 290 mm
Max. Vacuum: 10-6 torr by turbo pump
Max. positive pressure: 0.2 Mpa ( 2 bar
Please select the reaction vessel on the options bar
Temperature Controller
Two digital temperature controller is built-in a separated box with +/- 1ºC accuracy
One controller and T/C is for controlling
PID automatic control and auto-tune function.
30 programmable segments for precise process
Built-in protection for over-heated and broken Thermal couple.
Another one is for monitoring furnace running and cut-off power if the furnace overheated
Two Omega K-type thermal couples are included
One for furnace temperature control
One for temperature monitoring inside the chamber
RS485 port installed for PC operation
Dimension
Control Unit: 340mm L x 300mm W x 145mm H
Furnace: 350mm L x 265mm W x 390mm H
Net Weight
30 kg
Shipping package size
45" x 28" x 35" (after crating)
Shipping weight
260 lbs
Warranty
One-year limited warranty (Consumable parts are not covered by the warranty)
Certificate
CE Certified
NRTL Certification is available upon request, additional charges will apply
Operation Instructions
Optional
SS316 crucible is available upon request at extra cost and which use as the melting furnace for low melting point metal or molten salt up to 700°C (Pic. 1)
This furnace can be modified into a vacuum and high pressure furnace as Pic. 2 , 3, 4
Pic. 1Pic. 2 Pic. 3
Product Information
Shipping & Returns
Description
SPECIFICATION:
Structure
SS316 case for anti-corrosive processing
The crucible furnace has a heating chamber of 4.7" D x 8" H, (120 mm ID x 200 mm H)
The separated temperature controller for remote operation
The compact furnace can be put in the glovebox via an antechamber
Processing tubes are not included
An optional 4" processing tube with a flange can be installed as a vertical or horizontal tube furnace
Power
AC 110V, Single Phase 50/60Hz
1.5KW Max.
Max. Temperature
Max. 1100°C for short time <1hour
Continuous working temperature: <1000°C
Max. Heating Rate
20 °C /min Max.
SS316 Reaction Vessel (Optional, not included)
The stainless steel 316 reaction vessel consists of:
One SS316 processing tube
One DN80ISO-K top flange with six 1/4" compression tube ports
One alumina spacer is included for heating insolation and adapting the reaction vessel
When using the SS316 reaction vessel, the maximum temperature is 800°C, continuous 600°C
Tube dimension: Ø 76 x Ø 70 x D 290 mm
Max. Vacuum: 10-6 torr by turbo pump
Max. positive pressure: 0.2 Mpa ( 2 bar
Please select the reaction vessel on the options bar
Temperature Controller
Two digital temperature controller is built-in a separated box with +/- 1ºC accuracy
One controller and T/C is for controlling
PID automatic control and auto-tune function.
30 programmable segments for precise process
Built-in protection for over-heated and broken Thermal couple.
Another one is for monitoring furnace running and cut-off power if the furnace overheated
Two Omega K-type thermal couples are included
One for furnace temperature control
One for temperature monitoring inside the chamber
RS485 port installed for PC operation
Dimension
Control Unit: 340mm L x 300mm W x 145mm H
Furnace: 350mm L x 265mm W x 390mm H
Net Weight
30 kg
Shipping package size
45" x 28" x 35" (after crating)
Shipping weight
260 lbs
Warranty
One-year limited warranty (Consumable parts are not covered by the warranty)
Certificate
CE Certified
NRTL Certification is available upon request, additional charges will apply
Operation Instructions
Optional
SS316 crucible is available upon request at extra cost and which use as the melting furnace for low melting point metal or molten salt up to 700°C (Pic. 1)
This furnace can be modified into a vacuum and high pressure furnace as Pic. 2 , 3, 4
Pic. 1Pic. 2 Pic. 3
You May Also Like
NEW

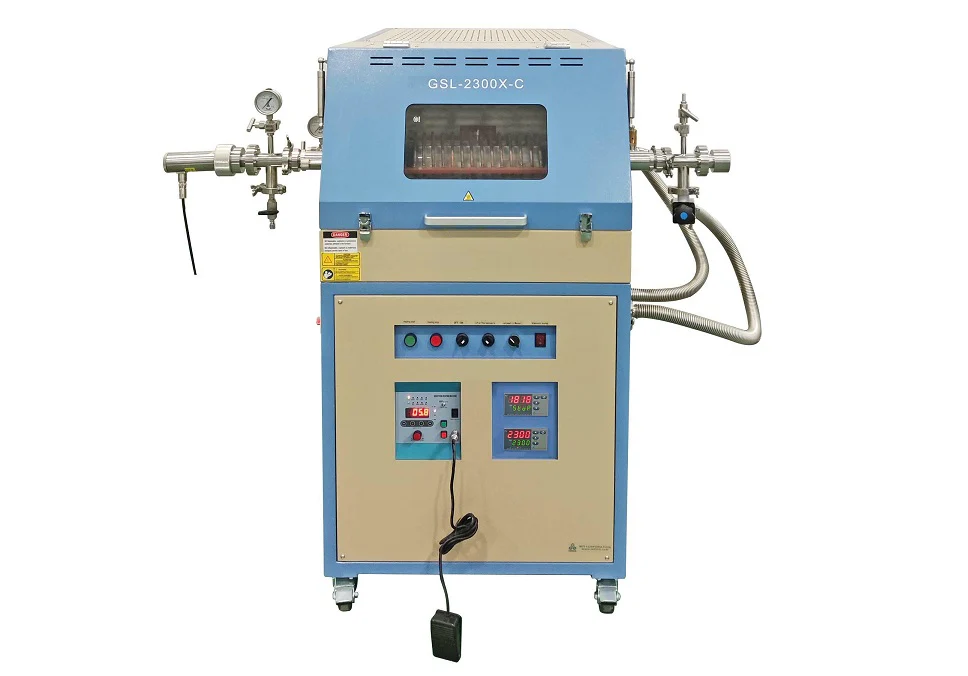

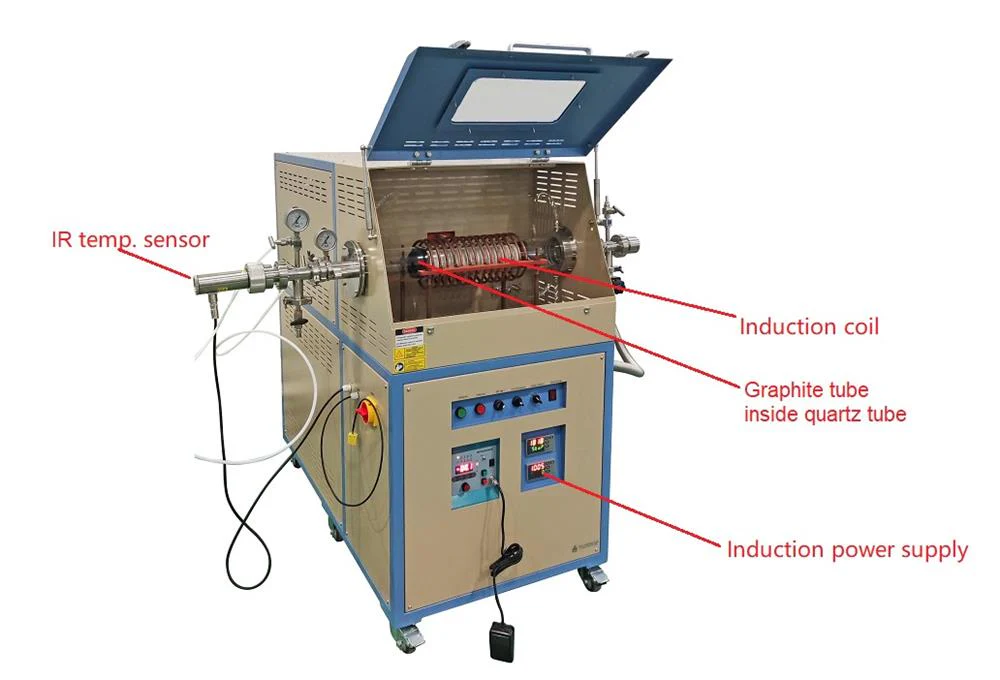

2300ºC Max. Induction heated Tube Furnace (30 mm ID Graphite Tube) with IR Temp.-Controlled - GSL-2300X-C
