1400°C Cold Wall High Vacuum Chamber Furnace (Ø100×120 mm) - HVF-1400X-CW
HomeStore

1400°C Cold Wall High Vacuum Chamber Furnace (Ø100×120 mm) - HVF-1400X-CW

1400°C Cold Wall High Vacuum Chamber Furnace (Ø100×120 mm) - HVF-1400X-CW

HVF-1400X-CW is a cold-wall high-vacuum chamber furnace with a maximum working temperature of 1400°C. It is designed for high-vacuum heating treatment of small samples in a well-defined, clean environment.
It features:
  • Water-cooled 304 SS chamber
  • All metal thermal insulation and heating elements designed for high vacuum conditions
  • Ø100×120 mm effective sample size
  • Ultimate vacuum <1e-6 torr
  • Compatible gas: Ar, N2, H2, etc.
SPECIFICATIONS:
Power
  • 208-240VAC, 3-phase, 50/60Hz
  • 12kW
Vacuum Chamber
  • Electropolished water-cooled stainless steel 304 vacuum chamber, ID Ø320×304 mm
  • Water-cooled load-lock door
  • Two water-cooled electric feedthroughs

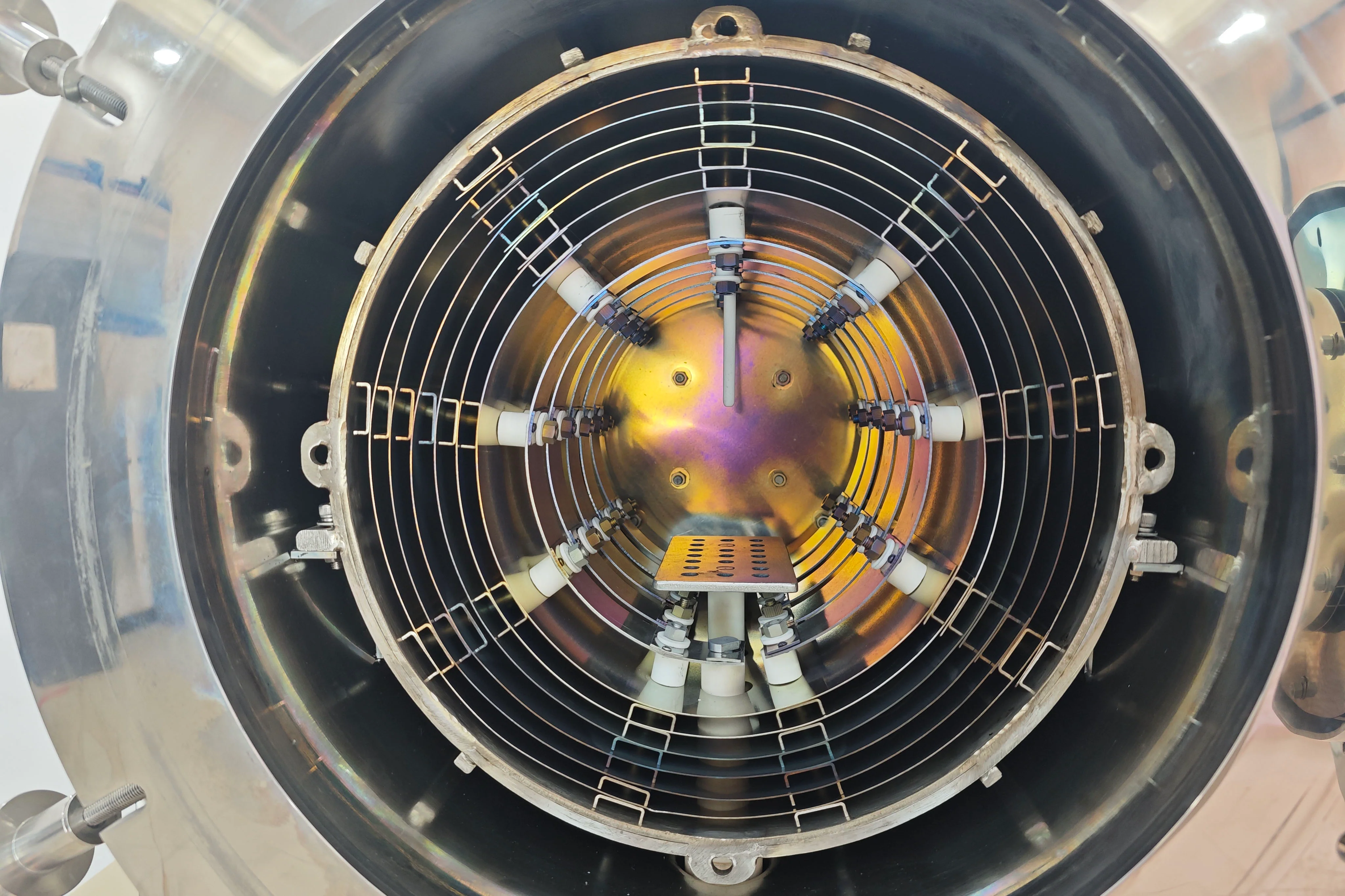

  • 6-layer all metal thermal reflection sheaths
  • Molybdenum sample stage
  • DN100CF port for vacuum generation
  • DN100CF manual gate valve
  • DN40KF port for ionization gauge
  • DN16KF port for convection vacuum gauge
  • Two 1/4" bellow-sealed needle valves (VCR) for gas inlet and outlet
  • Ultimate vacuum <1e-6 torr by 300L/s turbopump
  • Max working pressure <1.5 bar
Heating Unit
  • Molybdenum heating coils
  • Heating area Ø150×172 mm
  • Max sample size Ø100×120 mm at ±8°C temperature uniformity
  • Mo sample stage 120×60 mm
  • Type K thermocouple
  • Maximum working temperature <1400°C
  • Maximum heating rate <10°C
Temperature Control

  • Eurotherm EPC 3000 series
  • PID automatic temperature control loop
  • 28-segement programmable temperature profile
  • Temperature accuracy: ±1°C
  • RS485, MODBUS RTU for remote communication
Vacuum Gauge (Optional)
  • InstruTech IGM402 hot cathode ion gauge (1.00E-09 Torr to 1,000 Torr)
  • InstruTech convection pressure gauge
Water Chiller (Optional)

  • Power Supply: AC220V 50Hz

  • Power: 3.5KW

  • Working Current: 3.4~18.1A

  • Cooling Capacity: 26826 Btu/h

  • Water Tank Capacity: 40L

  • Inlet and Outlet: Rp1"

  • Maximum Pump Water Flow Rate: 75L/min
Vacuum Pump (optional)
  • 260L/s Pfeiffer Vacuum Turbomolecular pump
  • 240L/min rotary vane backing pump
  • 200L/min Pfeiffer Vacuum dry scroll pump

Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at an extra cost



$25,500.00
