Vacuum Box Furnace (10x8x5", 6L, 1050°C Max, 10-4 torr ) w/ Temp Controller - VBF-1050X-H6
HomeStore

Vacuum Box Furnace (10x8x5", 6L, 1050°C Max, 10-4 torr ) w/ Temp Controller - VBF-1050X-H6

Vacuum Box Furnace (10x8x5", 6L, 1050°C Max, 10-4 torr ) w/ Temp Controller - VBF-1050X-H6

VBF-1050X-H6 is a compact vacuum furnace with a 1050ºC max working temperature. It equips a W10"xD8"xH5" ceramic heating module in a stainless steel vacuum chamber which can reach a 10- 4 torr vacuum. It is the most cost-effective vacuum box furnace for material research.

SPECIFICATIONS

Furnace Structure


  • W260 x D200 x H 120 mm (~10“x8"x5", ~6.2 L ) ceramic heating chamber is placed in a stainless steel vacuum chamber with graphite felt thermal insulation
  • 25 mm dia quartz observation window is built-in on the front door
  • KF 25 vacuum port and the valves of the gas inlet and outlet are built into the vacuum chamber
  • A mechanical vacuum gauge is included
  • A digital temperature controller with 30 programmable segments is included
  • The heating element of the Ni-Cr-Al resistance coil is hidden in a ceramic chamber to avoid corrosion

Power


  • 2.5 kW Max.
  • AC 208V-240V, single phase, 50/60 Hz
  • Note: A power cable is included without a plug. Please install a plug by yourself or click the link below the picture to choose a plug according to your country or your lab requirement

Working Temperature


  • A k-type thermal couple is included
  • 30 segments programmable via a digital temperature controller
  • <= 1000 °C continuously
  • Max. 1050 °C, < 30 minutes
  • Heating rate: ~ 7°C/ min Max under vacuum (10-2 Torr), 85% output.
  • Temperature stability: +/- 1°C
  • RS485 port and software is included for PC operation
  • The furnace can be upgraded to 1500oC with different heating elements at an extra cost


Vacuum level and Vacuum Pump
  • 10- 2 torr via a rotary mechanical pump (cold condition) Pic. 1
  • 10-4 torr via turbopump (a cold condition with baking) Pic. 2
  • KF25 vacuum port and gas valves are included
  • One mechanical vacuum gauge is included
  • The vacuum pump is not included. Please click the link below to order separately
  • Digital vacuum gauge up to 10-5 torr with KF16 port is optional ( Click Pic 3 to order )
  • The "Gas Inlet" port on the back side flows gases into the chamber (Pic. 4).
  • Pic.1    Pic.2   Capacitance Diaphragm Gauge with Power Supply, Up to 3.8E-5 Torr - PGC-554-LD Pic.3             Pic.4

Crucibles (optional)
  • You may click the link below to choose an alumina or quartz crucible
  •      Alumina Crucible: High Purity 100 dia. x 80 H mm (530 ml ) Cylindrical with Covering Lid - EQ-CA-D100H80

Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at an extra cost.



$3,295.50

Original: $10,985.00

-70%
Vacuum Box Furnace (10x8x5", 6L, 1050°C Max, 10-4 torr ) w/ Temp Controller - VBF-1050X-H6—

$10,985.00

$3,295.50

More Images

Vacuum Box Furnace (10x8x5", 6L, 1050°C Max, 10-4 torr ) w/ Temp Controller - VBF-1050X-H6 - Image 2

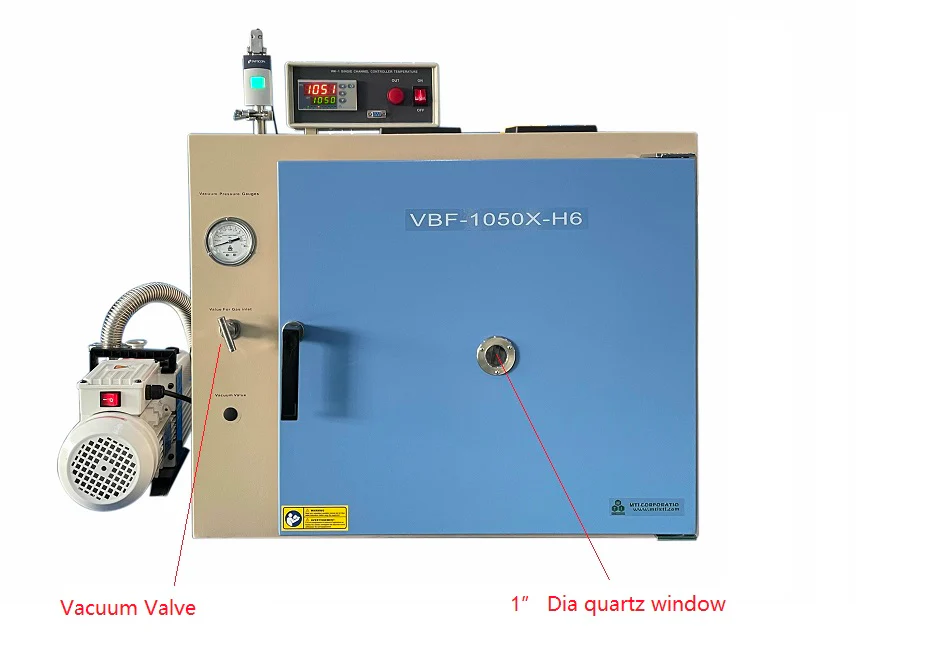

Vacuum Box Furnace (10x8x5", 6L, 1050°C Max, 10-4 torr ) w/ Temp Controller - VBF-1050X-H6 - Image 3

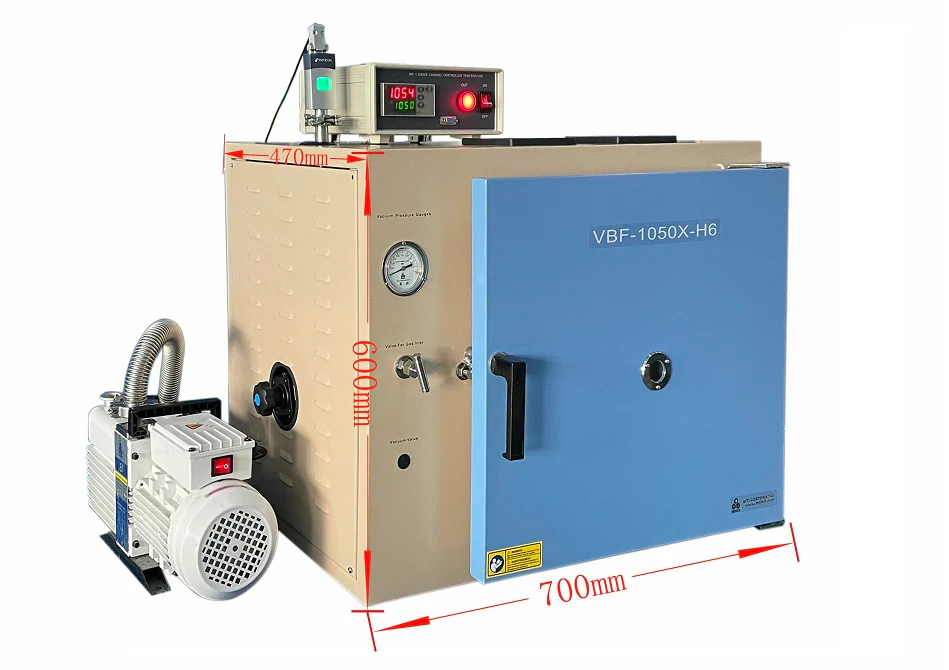

Vacuum Box Furnace (10x8x5", 6L, 1050°C Max, 10-4 torr ) w/ Temp Controller - VBF-1050X-H6 - Image 4
