1300 or 1700ºC Max. Bottom Loaded Inert Gas Atmosphere Box Furnace, (24x24x24", 216L) - KSL-GS216

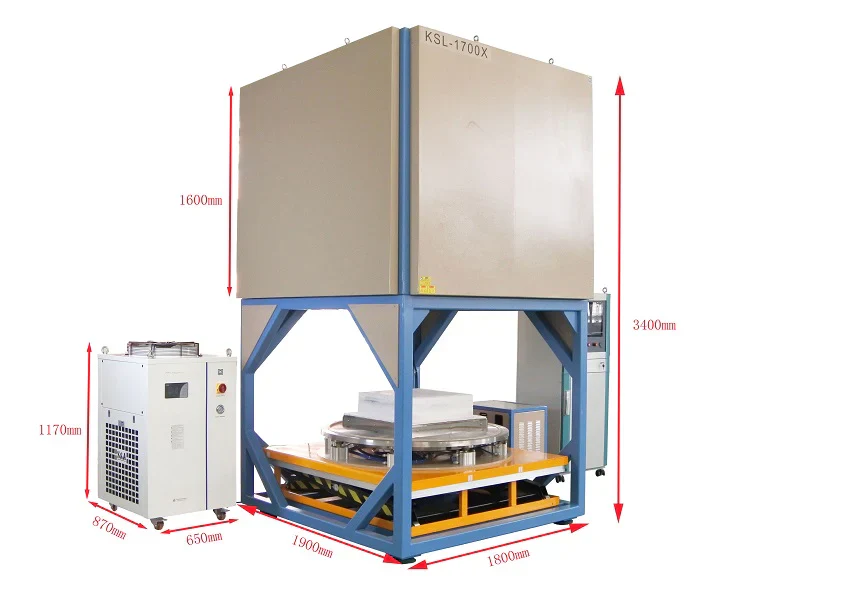

KSL--GS216 is a bottom-loading, larger box furnace ( 216 Liter capacity) with inert gas atmosphere control and optional max. working temperature of 1300ºC. or 1700 ºC. The furnace consists of high-quality alumina fiber bricks and Molybdenum alloy heating elements with a 24"x24"x 24" heating chamber. A vacuum-sealed steel chamber with a water cooling jacket as well as the vacuum & gas flow control system, enables material processing under an inert gas atmosphere.

SPECIFICATIONS

Furnace Structure	Double-layer stainless steel structure for maximum safety The bottom loading mechanism by electric hydraulic lift which can hold 200 Kg Max. sample Water cooling front door and sealing jacket for max. service life. Touch-screen digital control panel for all parameters. Precision temperature control with +/- 3ºC uniformity inside the chamber and +/-1°C accuracy.
Inside Chamber Size	Heated chamber: 600 x 600 x 600 mm ( ~ 24" x 24" x 24" . 216 Liter capacity ) Energy-saving 1800-grade fibrous alumina insulation. High-purity Al2O3 coating.
Power	AC 460V three-phase; 50/60 Hz 50 KW 63Amp 100Aair-breaker
Heating Element	12 Pcs Mo heating elements for 1700ºC. Max. or 12 Pcs SiC elements for 1400ºC. Max. or
Working Temperature	Continuous: 1600°C or 1300 °C Max. 1700°C (< 1 hr) MoSi2 or 1400oC ( 1hr) SiC
Heating Rate	5°C / min
Temperature Accuracy	+/- 0.5°C
Thermocouple	two B-type thermocouples (control thermocouple and secondary alarm thermocouple)

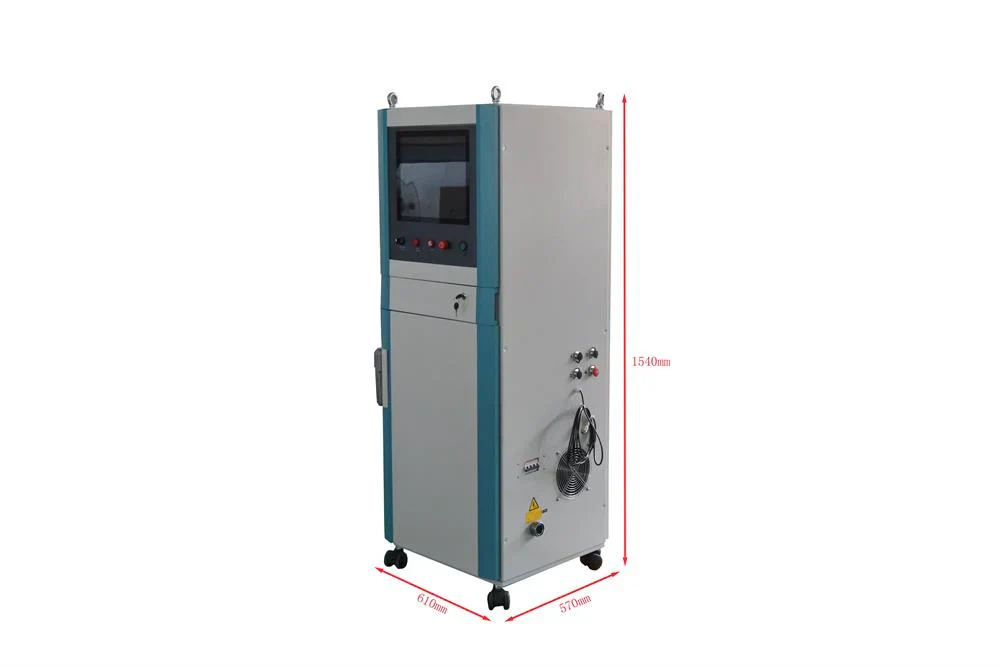

Temperature Control	Eurotherm controller with PID automatic control via SCR (Silicon Controlled Rectifier) 16 programmable segments for precise control of heating/cooling rate and dwell time. Over-temperature protection and thermocouple failure alarm functions allow operation without attendant(s). +/- 0.5ºC temperature accuracy. RS485 Communications Port
Gas Flow Control and Vacuum Valve	Two flow meters (#1: 0~8L/min; #2: 0~4L/min) are installed on the front panel of the furnace. One heavy-duty vacuum pump is included for fast removal of oxygen from the heating chamber
Water Cooling	A 16L/min recirculating water chiller is installed at the bottom of the furnace for cooling the furnace sealing flange (CE certified only) MET Certification (UL 1450) for the water chiller is available upon request at extra cost. Please contact our sales representatives for a quote.
Compliance	CE Certified for the furnace, vacuum pump, and water chiller. NRTL (UL61010) or CSA certification is available at extra cost.
Application Notes	For longer furnace life furnaces, we recommend the heating rate not to exceed 5 °C /min. The cooling rate shall also not exceed 5 °C /min. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. The refractory block must be inserted before closing door. Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
Warnings	ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of MTI One Year Limited Warranty. In order to prevent oxidation/corrosion damages to the Mo heating elements, it is necessary to keep a constant inert gas (Ar preferred) flow throughout the entire process. This is the most effective way to carry out any by-products.
