1700°C Vertical Atmosphere Controlled Furnace (11" I.D., 13 Liter) with Automatic Bottom Loading - VBF-1600X-B
HomeStore

1700°C Vertical Atmosphere Controlled Furnace (11" I.D., 13 Liter) with Automatic Bottom Loading - VBF-1600X-B

1700°C Vertical Atmosphere Controlled Furnace (11" I.D., 13 Liter) with Automatic Bottom Loading - VBF-1600X-B

VBF-1600X-B is a vertical atmosphere-controlled furnace with an 11" I.D. x 13"L sealed chamber and automatic bottom loading mechanism. Water-cooled SS vacuum flanges are lifted via the motor and can achieve vacuum 10-2 torr through a mechanical pump. It is designed for sintering material or annealing semiconductor wafers under vacuum or various other gas atmospheres with a temperature up to 1600°C. A programmable temperature controller, vacuum pump, and recirculating water chiller are included for immediate use.

SPECIFICATIONS

Features
  • Double-layer steel casing with water-cold vacuum-sealed chamber
  • High-purity fibrous alumina insulation for maximum energy saving
  • Automatic bottom loading for easy operation
  • The automatic pressure control and protection is built-in for safe operation
  • Programmable temperature control up to 1600ºC

Power
  • Single-phase 220 VAC, 50/60Hz (20 A breaker required)
  • 13 KW Max.

Working Temperature
  • 800°C - 1600°C continuously ( 1700oC for < 1 hr)
  • Temperature Uniformity: +/- 0.5°C
  • Recommended heating rate: ≤10°C/min

Heating Elements

  • MoSi2


Vacuum Chamber
  • Effective heating chamber size: 280 mm diameter x 300 mm H ( Capacity 18 Liters
  • Vacuum-sealed stainless steel chamber with fibrous alumina thermal insulation layer inside
  • A water-cooling jacket on the outside of the chamber and flange to protect the vacuum-sealing O-rings
  • One 16L/min recirculating water chiller is included ( Pic. 1)
  • Vacuum Chamber Bottom loaded flange driven by the electric motor for easy sample load of 50 Kg max.
  • One high-quality mechanical vacuum pump is included to achieve a 10-2 torr level. (Pic. 2)
  • Pic. 1Pic. 2



Control Panel
  • Touch screen control panel for controlling temperature and inert gas pressure.
  • Temperature control
    • Eurotherm Temperature Controller inside
    • 1 program, 24 segments programmed with ramping, cooling, and dwelling steps
    • Built-in PID automatic control, Auto-Tune function with overheating & broken thermocouple protection
    • +/- 0.1 ºC temperature accuracy
    • B-type thermal couple
  • Pressure control
    • Furnace purging function by manual or auto mode
    • Constant pressure control can be achieved between 100 - 115 KPa
    • Safety pressure release valve built-in
    • Two gas flowmeters are installed in the front panel.
  • PC Control
    • RS485 port is built-in for PC operation
    • Please order the laptop along with the furnace from us, we will install the software and test it before shipping.

Compliance
  • CE Certified
  • NRTL / CSA Certification is available upon request at an extra cost



$21,898.80

Original: $72,996.00

-70%
1700°C Vertical Atmosphere Controlled Furnace (11" I.D., 13 Liter) with Automatic Bottom Loading - VBF-1600X-B—

$72,996.00

$21,898.80

More Images

1700°C Vertical Atmosphere Controlled Furnace (11" I.D., 13 Liter) with Automatic Bottom Loading - VBF-1600X-B - Image 2

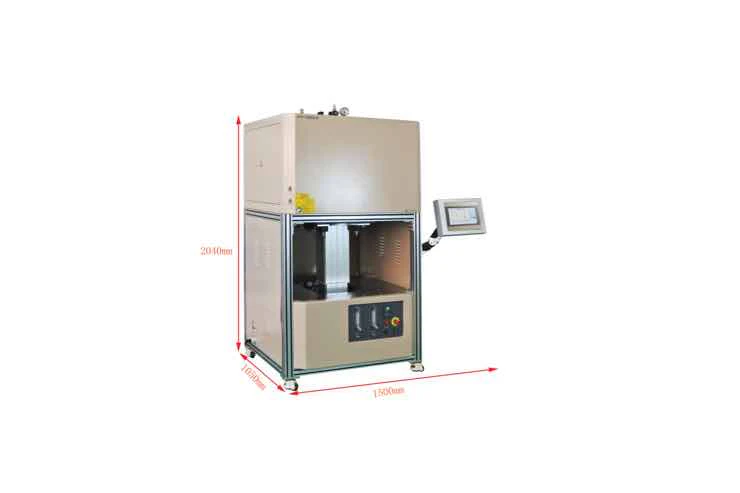

1700°C Vertical Atmosphere Controlled Furnace (11" I.D., 13 Liter) with Automatic Bottom Loading - VBF-1600X-B - Image 3
