1200°C Max. 5-side Heating Atmosphere Controlled Muffle Furnace ( 16"x16"x 16" 64 L) - KSL-1200X-AC-5S
HomeStore

1200°C Max. 5-side Heating Atmosphere Controlled Muffle Furnace ( 16"x16"x 16" 64 L) - KSL-1200X-AC-5S

1200°C Max. 5-side Heating Atmosphere Controlled Muffle Furnace ( 16"x16"x 16" 64 L) - KSL-1200X-AC-5S

KSL-1200X- AC-5S is a five-side heating atmosphere-controlled Box furnace, designed for material synthesis under a controlled inert gas atmosphere up to 1100 ºC with enhanced temperature uniformity. The furnace consists of high-quality alumina fiber insulation, Kanthal Fe-Cr-Al heating elements with 64L capacity, and a hermetic steel chamber with a water-cooling jacket. (Updated from KSL-1100X- AC from 8/15/14)

Features

  • Hermetic chamber for inert, reducing, or oxidative gas atmosphere
  • Heating Area 400 × 400 × 400 mm, 5-side heating
  • Uniform Area 300 × 300 × 300 mm ±2℃ @ 800 °C
  • Optional 300 × 300 × 300 mm retort for debinding


SPECIFICATIONS:

Power
  • 9.5 KW, 208 - 240V single phase, 50/60Hz
  • AC 208, 400V, 480V, 3 phases is also available upon request.
  • 10-foot power cord is included. No power plug.

Pressure
  • < 9 psig

Heating Chamber
  • Five-side heating for best temperature uniformity.
  • High-quality alumina fibrous insulation
  • Kanthal  Fe-Cr-Al resistance heating wire
  • Hermetic steel chamber for vacuum and gas atmosphere control
  • Sample load: < 35 kg.
  • Vacuum level: ( please let us know your requirement)
    • 10-1 torr for use of oxygen or inert gas by standard thermal insulation material

Heating Area
  • 400x 400x 400 mm (~ 16"x16" x16"), 64 Liter

Uniform Heating Area
  • Uniform Area 300 × 300 × 300 mm ±2℃ @ 800 °C

Working Temperature
  • <1100°C, continuously
  • <1200°C, max with < 1 hr heating time.

Temperature Controller
  • FA-YD518P-AG PID temperature controller
  • 30 programmable temperature segments
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • RS485 PC communication port

Eurotherm Temperature Controller (optional)
  • Upgrade to Eurotherm Temperature Controller with enhanced temperature control of fluctuation <+/- 0.1ºC
  • This package includes a Eurotherm 3000 series temperature controller and a communication cable (RS485 - USB)

Thermocouple

Heating Rate
  • < 10°C / min recommended
  •  20 °C/ min Max.

Vacuum
  • < 0.5 torr
  • KF25 port
Gas flow control
  • Two 8 L/min float flow meters are installed in the front
Vacuum Pump
  • 240 L/min rotary vane vacuum pump, YTP-550.
  • Power 110V or 208-240VAC, single phase, 50/60Hz.
Water Cooling
  • A 16L/min recirculating water chiller
  • Over-temperature alarm
  • Water chiller failure alarm
  • Power 110V or 208-240VAC, single phase, 50/60Hz.

Retort (optional)
  • Stainless steel 310 retort is also available for debinding purposes.
  • Retort dimensions 300 × 300 × 300 mm
  • The retort comes with its own gas inlet and outlet.
Working Gases
  • Inert gas
  • Air
  • Oxygen
  • 5% hydrogen non flammable inert gas
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost. please click mark below to learn details

Warning & Note
  • Toxic, corrosive, or flammable gasses are not recommended for use with this furnace. Please consult with our engineering team for more details





Select Temperature Controller
From $14,995.50

Original: $49,985.00

-70%
1200°C Max. 5-side Heating Atmosphere Controlled Muffle Furnace ( 16"x16"x 16" 64 L) - KSL-1200X-AC-5S—

$49,985.00

$14,995.50

More Images

1200°C Max. 5-side Heating Atmosphere Controlled Muffle Furnace ( 16"x16"x 16" 64 L) - KSL-1200X-AC-5S - Image 2

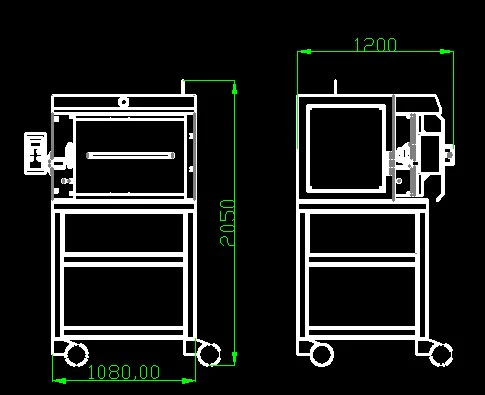

1200°C Max. 5-side Heating Atmosphere Controlled Muffle Furnace ( 16"x16"x 16" 64 L) - KSL-1200X-AC-5S - Image 3

1200°C Max. 5-side Heating Atmosphere Controlled Muffle Furnace ( 16"x16"x 16" 64 L) - KSL-1200X-AC-5S

KSL-1200X- AC-5S is a five-side heating atmosphere-controlled Box furnace, designed for material synthesis under a controlled inert gas atmosphere up to 1100 ºC with enhanced temperature uniformity. The furnace consists of high-quality alumina fiber insulation, Kanthal Fe-Cr-Al heating elements with 64L capacity, and a hermetic steel chamber with a water-cooling jacket. (Updated from KSL-1100X- AC from 8/15/14)

Features

  • Hermetic chamber for inert, reducing, or oxidative gas atmosphere
  • Heating Area 400 × 400 × 400 mm, 5-side heating
  • Uniform Area 300 × 300 × 300 mm ±2℃ @ 800 °C
  • Optional 300 × 300 × 300 mm retort for debinding


SPECIFICATIONS:

Power
  • 9.5 KW, 208 - 240V single phase, 50/60Hz
  • AC 208, 400V, 480V, 3 phases is also available upon request.
  • 10-foot power cord is included. No power plug.

Pressure
  • < 9 psig

Heating Chamber
  • Five-side heating for best temperature uniformity.
  • High-quality alumina fibrous insulation
  • Kanthal  Fe-Cr-Al resistance heating wire
  • Hermetic steel chamber for vacuum and gas atmosphere control
  • Sample load: < 35 kg.
  • Vacuum level: ( please let us know your requirement)
    • 10-1 torr for use of oxygen or inert gas by standard thermal insulation material

Heating Area
  • 400x 400x 400 mm (~ 16"x16" x16"), 64 Liter

Uniform Heating Area
  • Uniform Area 300 × 300 × 300 mm ±2℃ @ 800 °C

Working Temperature
  • <1100°C, continuously
  • <1200°C, max with < 1 hr heating time.

Temperature Controller
  • FA-YD518P-AG PID temperature controller
  • 30 programmable temperature segments
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • RS485 PC communication port

Eurotherm Temperature Controller (optional)
  • Upgrade to Eurotherm Temperature Controller with enhanced temperature control of fluctuation <+/- 0.1ºC
  • This package includes a Eurotherm 3000 series temperature controller and a communication cable (RS485 - USB)

Thermocouple

Heating Rate
  • < 10°C / min recommended
  •  20 °C/ min Max.

Vacuum
  • < 0.5 torr
  • KF25 port
Gas flow control
  • Two 8 L/min float flow meters are installed in the front
Vacuum Pump
  • 240 L/min rotary vane vacuum pump, YTP-550.
  • Power 110V or 208-240VAC, single phase, 50/60Hz.
Water Cooling
  • A 16L/min recirculating water chiller
  • Over-temperature alarm
  • Water chiller failure alarm
  • Power 110V or 208-240VAC, single phase, 50/60Hz.

Retort (optional)
  • Stainless steel 310 retort is also available for debinding purposes.
  • Retort dimensions 300 × 300 × 300 mm
  • The retort comes with its own gas inlet and outlet.
Working Gases
  • Inert gas
  • Air
  • Oxygen
  • 5% hydrogen non flammable inert gas
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost. please click mark below to learn details

Warning & Note
  • Toxic, corrosive, or flammable gasses are not recommended for use with this furnace. Please consult with our engineering team for more details
